Custom Made Oil Filter Rotary Pleating Machine

China Custom Made Oil Filter Rotary Pleating Machine supplier

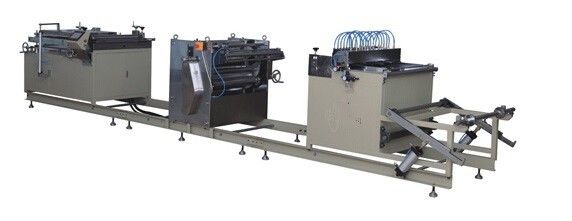

Large Image :  Custom Made Oil Filter Rotary Pleating Machine

Product Details:

Place of Origin: Wenzhou, China
Brand Name: CHANGJIANG
Certification: CE ISO9001
Model Number: GT-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Standard export package
Delivery Time: 30 Days after deposit
Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
Contact Now
Detailed Product Description
Product Capability: 35m/min Max Width: 600mm
Min Width: 30mm Max Pleat Height: 50mm
Min Pleat Height: 20mm Temp. Control: 0-300℃
Main Power: 12kw Working Air Pressure: 0.6MPA

Custom Made Oil Filter Rotary Pleating Machine



Quick Detail:



1.  Auto Paper de-coil

2.  Paper pre-slitting machine

3.  Pre-heating device before pleating

4.  Auto counter

5.  Water steam device

6.  Rollers marking machine

7.  Roller and gear collecting machine

8.  Pleated paper heat forming and conveyer device

9.  600mm machine width



Features



1. Rotary type pleating machine is a type of pleating machine designed for high speed production.

2. The rotary pleating machines are best suited machines for those places where there is a requirement of high production volumes of single specific filter size and pleat depth.
3. These machines are usually not adjustable with regard to pleat sizes but the pleats of different sizes can be made by changing the set of pleating rollers.
4.The rollers of various sizes can be used for making different pleat sizes. It's equipped with automatic pre-slitting, pleating system, electric (after) heating system, automatic counter system.
5. According to customer's demands, main machine, supplement part (for Transferring the paper), working platform, decoiler (paper roll holder) can separately be ordered. This machine can be made as customer's requirements.


Specifications:



Product capability 0-35m/min
Max width 600mm
Min width 30mm
Max pleat height 50mm
Min pleat height: 20mm
Temp. control 0-300℃
Main power 12kw
Working air pressure 0.6MPA
Power supply 380V/50HZ
M/C weight 750kg
M/C dimension 3600*1170*1200mm





Applications



This machine is used for pleating and forming ECO filter element.
