TYPE: | Multi-stage Separator | Separate Efficiency: | 100% |
---|---|---|---|
Installation: | Vertical Or Horizontal | Precision: | 0.3, 1, 3, 5um |
Max Flowrate: | 6500000 Nm3/h | Material: | Carbon Steel, SS316/304 |
High Light: | natural gas filter separator,gas liquid separator |

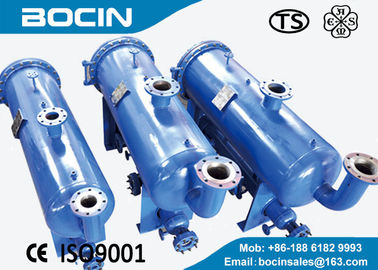

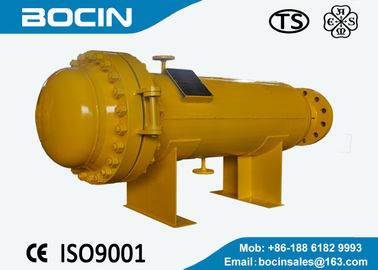

Horizontal multi-stage separator for removing tiny dust and liquid from gases
Description:

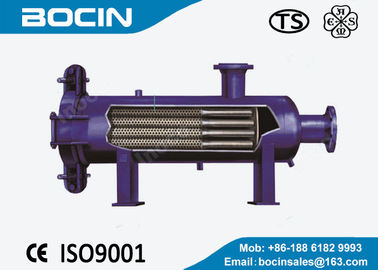

U - TC - YG series horizontal multi-stage separator for multi-stage combined structure.Using the guide rod, multilayer coalescence filter, cyclone separator, silk screen defoaming device or leaf demister, 100% can be separated more than 3 to 5 microns of droplet, separation of 90% drop 0.5 ~ 3 mu m droplets, for solid particles completely filter to 0.5 mu m / 99%.
Mainly used in need efficient removal of solid and liquid particles occasions, regardless of the particle size can be used.Filter separator is particularly suited to removing extremely tiny dust and smoke.Its wide application, including the exploitation of coal-bed methane diversified impurities and moisture, clean the lubricating oil and gas is a process to remove inclusions of compression station and upper part of the city gas pipeline, from to remove ethanol dehydration after gas, etc.
Fittings:
Fast-opening blind (insert button, clamp, get a ring)
The relief valve
Drain valve
Import and export of ball valve
Differential pressure switch
Differential pressure transmitter
Level gauge
Liquid level switch
Technical parameters:
1. Working pressure: 0.1 ~ 40.0 Mpa
2. Working temperature: - 40 ~ + 300 ℃
3. Filtration separation precision: 0.3, 1, 3, 5 microns
4. Filtration separation efficiency: 99.98%
5. Maximum flow rate: 6500000 nm3 / h
6. Designed specification: GB150;ASME
7. Available materials: carbon steel, SS316/304...
8. Surface treatment: sand blasting, polishing, paint
Model | Inlet/outlet(DN) | Max flowrate(m3/h) | A(mm) | B(mm) | C(mm) | D(mm) | L1 | L2 |
(mm) | (mm) | |||||||
TC-W-6-1 | 50 | 4400 | 1080 | 150 | 1681 | 150 | 285 | 730 |
TC-W-8-1 | 80 | 4400 | 1095 | 165 | 1746 | 200 | 310 | 760 |
TC-W-10-1 | 100 | 4400 | 1105 | 185 | 1816 | 250 | 335 | 787 |
TC-W-12-2 | 150 | 8800 | 1130 | 200 | 1941 | 300 | 360 | 813 |
TC-W-14-4 | 150 | 17600 | 1130 | 200 | 1979 | 350 | 385 | 839 |
TC-W-16-6 | 150 | 22000 | 1155 | 238 | 2133 | 400 | 410 | 856 |
TC-W-18-8 | 200 | 30625 | 1155 | 238 | 2163 | 450 | 435 | 881 |
TC-W-20-8 | 250 | 35000 | 1180 | 250 | 2340 | 500 | 460 | 906 |
TC-W-22-9 | 250 | 39375 | 1180 | 250 | 2365 | 550 | 485 | 931 |
TC-W-24-12 | 250 | 54000 | 1180 | 250 | 2383 | 600 | 510 | 956 |
TC-W-26-12 | 250 | 54000 | 1180 | 250 | 2408 | 650 | 510 | 981 |
