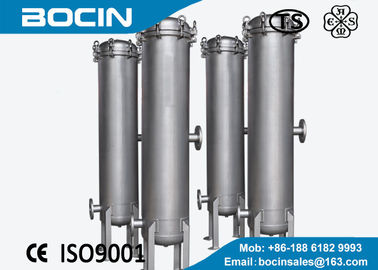

PP pleated multi Cartridge Filter Housing with stainless steel material

PP pleated multi Cartridge Filter Housing with stainless steel material
PP pleated multi Cartridge Filter Housing with stainless steel material PP pleated multi Cartridge Filter Housing with stainless steel material PP pleated multi Cartridge Filter Housing with stainless steel material

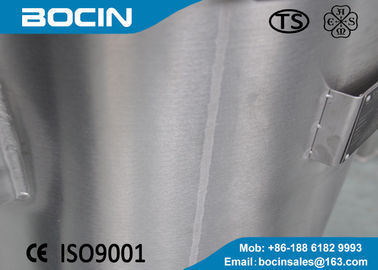

Large Image :  PP pleated multi Cartridge Filter Housing with stainless steel material

Product Details:
Place of Origin: Jiangsu, China
Brand Name: UNITE
Certification: ASME, ISO, ABS
Model Number: U-JM-DY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 500 Sets / Month
Detailed Product Description
Material: CS, SS Surface: Polishing
Filtration Rating (μm): 0.02-500 Microns Type: Big Flow Cartridge Filter
Application: Liquid Filtration Number Of Cartridge: 1-200
High Light:

filter cartridge housing

,

stainless steel water filter housing

High Flow Rate Precision Filter,Big Flow Water Cartridge Filter Easy Operate



Description:

U - JM - DY high flow rate precision filter adopts special filter, filter combined with many years of industry experience and the design and manufacture, can in the system design of compact maximize traffic, compared with the traditional filtering system, this series of large flow filter has more advantages.

DY series filter with large flow filter, filter using 30 meters core wrinkle technology will filter yuan compressed into one unit, make the flow of a single filter up to 50 t/H, with large carrying capacity, at the same time, also sufficient to reduce the maintenance cost of the late filter operation.

On this basis, the same conditions of flow can choose fewer filter, so as to reduce the filter size, compared with competitive products of cartridge, cartridge of space for other half.Compact system design saves valuable space for the factory.In later maintenance, workers will be more convenient operation, so the budget of the investment will be an advantage from the entire device.





Technical parameters:

Design criteria: refer to GB 150-2011

Design pressure: 0 ~ 1.6 MPa;

The gasket material: teflon, fluorine rubber, silicone rubber, nitrile butadiene rubber, etc.

Shell material: 304/316 l, non-standard design (CS liner PO, etc.);

Filtration efficiency: 99.99%;

Filtration precision, 0.1 ~ 200 um;

Working temperature: 20 ~ 110 ℃.

Optional filter: PP folding, glass fiber folding, PES folded, PTFE fold, stainless steel sintered felt fold, titanium rods, etc.



Model Element Qty Element Size Element Dia Inlet/outlet(DN) Shell Dia(mm)
JM-DY-40-1 1 40” 152.4 50 219
JM-DY-60-1 1 60” 152.4 50 219
JM-DY-40-2 2 40” 152.4 65 377
JM-DY-60-2 2 60” 152.4 65 377
JM-DY-40-3 3 40” 152.4 80 450
JM-DY-60-3 3 60” 152.4 100 450
JM-DY-40-5 5 40” 152.4 150 550
JM-DY-60-5 5 60” 152.4 150 550
JM-DY-40-7 7 40” 152.4 200 650
JM-DY-60-7 7 60” 152.4 250 650
JM-DY-40-8 8 40” 152.4 250 650
JM-DY-40-9 9 40” 152.4 300 700
JM-DY-40-10 10 40” 152.4 300 700
