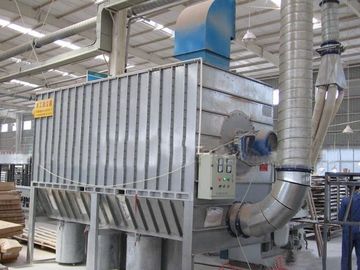

Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H

China Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H supplier
Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H supplier Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H supplier Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H supplier Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H supplier Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H supplier Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H supplier

Large Image :  Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H

Product Details:

Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO 9001:2008 certified / SGS approved
Model Number: EPPC M series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 6000-30000.00/ set
Packaging Details: steel frame / container
Delivery Time: 30-60 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets / months
Contact Now
Detailed Product Description
Type Of Dust Collector: Pulse Jet Dust Collector Cleaning Type: Pulse Jet Cleaning, On Line Filter Cleaning
Gas Temperature: Ambient To High Tempreature Material: 5mm Steel Plate
Air Flow: 3000-60000M3/H Filter Speed: 1.20-1.50 M/min
Filter Bags: Different Working Condition Will Have Diffrent Equiped Shape: Baghouse Dust Collector



Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H





Dust collector baghouse filter  for metal grinding / sawing / sanding / polishing process.

We customize desgin and produce  for different gas working condition and different type of gas pollutions .Here , introduce our  sigle baghouse dust collector for general dust source in process of polishing , sanding , grinding , milling , sawing , etc . The air flow is usually from 3000 M3/ h to 60000 M3/h.



Brief Introduction :

ECOGRACE pulse jet dust collector Filter Unit is generally with smaller air flow from 2000 M3/H to 60000 M3/H , which is small in outside dimention , and we will design the most reasonable dimention for easy container loading and shipping , no need more installatino work at production site . It will be assembled in whole and put into the container , you can directly start when take out from container .



Dust Collector  technical specification :

Model No.

EDMC 120

Air Flow

10000-12000 M3/H

Filter  speed

1.2 M/min

Temperature of the gas

Room ambient

Filtration area

120   M2

Filter media

Polyester filter bag

Filter bag size

D130X3000

Compressed air consumption

0.5-0.7 M3/min

Pulse valve size

 1.5  inch

Resistance

<1000 pa



Working Principle of  dust collection systems  :

1. The compostion of small dust collector unit  :

Assmebled Filter Unit ,  Fan , PLC , air compressor . Rotary dust discharging.

2. The filter  cleaned  by solenoid valve pulse.  ASCO and GOYEN is the regular band we take .

3. Filter cage  and filter bag will be fit in the assembled baghouse .

4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .



Advantage of ECOGRACE dust collector Filter Unit :

1. Easy operation maintenance.

2. Assembled when EX work from our factory and no more  intallation work needed.

3. High filtration efficiency up to 99.99% , low  emission < 30 mg/ M3.

4. Energy saving

5. Lower system resistance up to < 1000 pa.

6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.



ECOGRACE project show :

Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H





Production and shipping  :



Metal Grinding Bag Filter Dust Collector Bag House Filters Industrial 12000 M3/H
