CE 1um vertical multi bags Bag Filter Housing for water treatment filtration

China CE 1um vertical multi bags Bag Filter Housing for water treatment filtration supplier
CE 1um vertical multi bags Bag Filter Housing for water treatment filtration supplier CE 1um vertical multi bags Bag Filter Housing for water treatment filtration supplier

Large Image :  CE 1um vertical multi bags Bag Filter Housing for water treatment filtration

Product Details:

Place of Origin: JIANGSU, CHINA
Brand Name: UNITE
Certification: ASME, ISO9001
Model Number: U-DS-B

Payment & Shipping Terms:

Minimum Order Quantity: 1 SETS
Packaging Details: Export Wooden Case
Delivery Time: 10-50 days
Payment Terms: T/T, L/C
Supply Ability: 500 Set/Sets / Month
Contact Now
Detailed Product Description
Model: Multi Bag Filter Application: Sea / River / Lake / Rain / Industrial Water Filtration
Housing Material: 304, 316L, CS, Etc Applicable Viscosity(cp): 1-40
Operating Temperature(℃): 90 Design Pressure (MPa): <4 (40bar)
Filtration Rating (μm): 0.5-500 Microns

Multi bags Bag high pressure Filter Housing / filter cartridge housing





Quick Detail:

* Type: bag filtration
*  Easy change bags.
* Carbon steel,SS304,SS316 is available.
* High performance

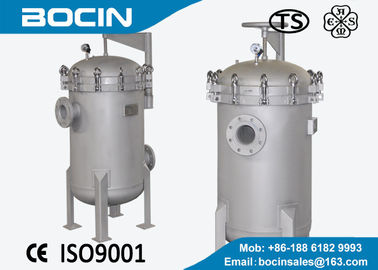

1, Multi bag filter

Description >>

multi-bag filter housing features a cost effective, handwheel operated, davit cover. Loosen the swing bolts, turn the davit handwheel and swing the cover aside.
Standard GB150 ,”CS ” or ASME.
Tapered, electro-polished stainless steel perforated baskets.

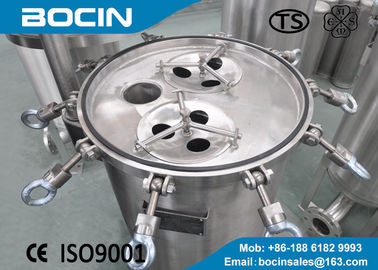

Unique 3-point hold-down ensure high quality of seal between each filter bag and housing body. Simple design ,ensures simple, effective operation.
Rugged, simple handwheel-operated davit cover makes the HD perfect for cost sensitive applications.
Hydraulic-assist davit cover is available as an option.
Positive O-ring sealing provides easy, reliable operation.
Available PP,rubber ,PTFE etc. lining ,carbon steel and 304,316L stainless steel for high corrosion resistance.
standard sizes with 2 through to 24 bag housings are available for size 02 filter bags.



Features >>

Hand wheel operated davit cover
Positive bag hold downs
Up to 24 bags per housing
Positive O ring seal



Benefits >>

Rugged, reliable and very cost effective.
Perfect bag to housing sealing for no by-pass
Can handle very high flow rate / high dirt load applications
No external leakage

Technical Parameter



model



DS-B-S3



DS-B-S4



DS-B-S5



DS-B-S6



DS-B-S7



DS-B-S9

DS-B- S10 DS-B- S14 DS-B- S17 DS-B- S21 DS-B- S24
diameter(DN) 80 100 125 150 150 200 200 250 300 350 350
max flowrate(m3/h) 75 100 125 150 175 225 250 350 425 525 600
filter area(m2)



1.35



1.8



2.25



2.7



3.15



4.05



4.5



6.3



7.65



9.45



10.8



A(mm)



1203



1206



1268



1288



1370



1440



1480



1555



1845



1925



2015



B(mm)



262



280



313



313



350



740



460



830



950



980



1000



D(mm)



450



500



550



600



700



750



800



900



1000



1100



1200



L(mm)



350



400



400



450



500



550



580



650



715



800



850



2,Multi bag filter Specification



CE 1um vertical multi bags Bag Filter Housing for water treatment filtration



3, Multi bag filter ApplicationCE 1um vertical multi bags Bag Filter Housing for water treatment filtration

CE 1um vertical multi bags Bag Filter Housing for water treatment filtrationCE 1um vertical multi bags Bag Filter Housing for water treatment filtrationCE 1um vertical multi bags Bag Filter Housing for water treatment filtration



Applications:

The liquid bag filter assemblies designed by us have been usedin the industry for varied applications – starting from chemicals to dyes and more difficult sugar solution/syrup filtration in the antibiotics and beverage industry.

Bag filters are suitably designed keeping the application in mind. A range of media is available to handle applications in the Pharmaceutical, Biotech, Chemical, F&B, Wines and Breweries, Dyes and Dye Intermediates etc. Bag filters are used where a large volume of liquid containing a relatively small quantity of solids is filtered. The system is suitable to overcome the problem of Sparkler filters, filter presses where opening and closing of the system becomes tedious and difficult.



Competitive Advantage:



Multiple filtration uses require multiple filter types. Extended Life designs offer longer life and fewer change-outs with twice the dirt-holding capacity of standard felt bags. Multilayer designs provide high contaminant loading and long service life. The filter bags offer absolute-rated filtration down to three microns, and an entirely seamless design for more precise filtration. The Heavy Duty Extended Life filter bag offers greater depth filtration than conventional filter bags.
