3 Phase Sauna Steam Generator 16kw 400v With Waterproof Control Panel Auto Flushing During Drain

3 Phase Sauna Steam Generator 16kw 400v With Waterproof Control Panel Auto Flushing During Drain
3 Phase Sauna Steam Generator 16kw 400v With Waterproof Control Panel Auto Flushing During Drain

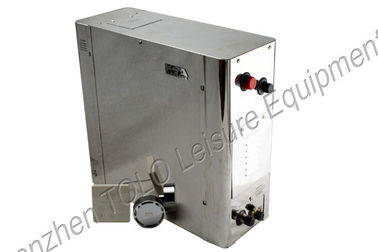

Large Image :  3 Phase Sauna Steam Generator 16kw 400v With Waterproof Control Panel Auto Flushing During Drain

Product Details:
Place of Origin: China
Brand Name: KSA
Certification: CE
Model Number: KSA-S160
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1-3 workdays
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 1800 sets
Detailed Product Description
High Light:

steam bath generators

,

home steam generator



3 Phase Sauna Steam Generator 16kw 400v With Waterproof Control Panel Auto Flushing During Drain





Quick Detail:



  1. Control panel: Touch screen digital and optional
  2. Type: Wet Steam Sauna
  3. Power output: 16.0kw
  4. voltage: 380~400V
  5. phase: 3
  6. Current: 23.5A
  7. Main Material: stainless steel tank and Mirror-polished stainless steel shell
  8. Color: stainless steel
  9. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  10. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  11. Shape: Cuboid
  12. Size: 475*185*450mm
  13. Room volume(cubic meter):14~19
  14. Usage: steam sauna room
  15. working time: 1~60 minutes or long time
  16. Heating: heat elements
  17. Power source: Electric
  18. Time Setting: 1-60mins
  19. Temperature range to control: 95 F degree~131 F degree
  20. Temperature range to show on control panel: 43 F degree ~140 F degree





KSA-S 16.0kw steam generator with 2pcs steam heads/ 2 steam outlet.



  • We produce steam generator over 10years! Intelligent sequential heating, fill fresh cold water without pause, automatic to turn off, a self flushing cycle , with pressure to drain.
  • Exclusive microprocessor operating system
  • Precision temperature probe for optimal steamroom temperature control
  • Removable and serviceable industrial strength heating elements
  • Intelligent to indicate fault with the code.
  • To show CH can working for long
  • Can pause at working
  • Light can be connected to controller, water inflow to magnetize and filtrate etc.
  • Intelligent to save two sets of temperature, can individual set time by memory





Description:



FUNCTIONS AND OPERATION



DISPLAY PANNEL: KSA elegance touch screen control kit

Temperature: The LCD will display the temperature measured by the temperature sensor in the range of 43℉~140℉.

Set temperature: The temperature setting range is 95℉~131℉. The default setting temperature is 109℉.

Set time: The maximum setting time is 60 minutes. The default working time is 45 minutes. If the system is in long-term working mode, the CH blinks.



1. Fast response: With the special and delicate design of the system, a large volume of steam will come out within 5 minutes after the heating elements begin to work, and quickly boosts the temperature to the setting value. The intelligent heating-by-section makes heating process more efficient and minimizes the energy used, more importantly, non-stop steam generation is ensured even during the water tank filling period.

2.  Multi-protection. Besides the GFCI (Ground Fault Circuit Interrupter ), the KSA-E series also installed the following protection circuits: over-heat protection; lack-of-water protection; over-pressure protection, assisted by the newest microprocessor technology to give automatic diagnose message in order to give customer maximum level of safety and easy trouble-shooting when any fault happens.

3. As professional we could tell you that the decisive fact for a steam generator is actually the quality of the heating elements rather than functions. Therefore we choose the best magnesian powder, 304# stainless steel, and seal glue to guarantee a durable product. We also oxidize the heating elements surface with Teflon . More importantly, the advanced automatic washing, cooling and draining functions minimize the conglomeration of calcium and magnesium on the heating element so as to greatly extend the life of heating elements.

4. To install water magnetizing filter impurity, or pressure reducer to reduce the inlet water pressure, or external light according to customer requirements.





Applications:



Fit for 14~19 cubic meter volume home use and commercial use

Make you more healthy!





Specifications:



KSA- S160 steam generator:

1) Power:160kW, voltage: 220/380V, phase:3
2) controllers: KSA-elegance
3) Operates machine for 1~60 minutes before turning off
4) Automatically shuts down when water level is too low
5) Temperature high limit switch
6) With auto cleaning and draining function
7) High quality with 2-year warranty





Please see the details for your installment reference:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-S160

16.0

14~19

380-415V3N~

23.5

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5







2 steam outlets KSA-S160 steam gernerator



  1. Black and White Touch screen control panel with Digital display
  2. Control panel used the advanced inducing technology
  3. Controls sauna temperature 35 degree to 55 degrees
  4. Controls sauna time 1 minute to 60 minutes or long time
  5. Intelligent to heat by segment
  6. Intelligent to fill water with steam
  7. Intelligent to do a self flushing cycle
  8. Light can be connected to controller
  9. Intelligent to indicate fault with the code
  10. Can pause at working
  11. To show CH can working for long
  12. Intelligent to save two sets of temperature, can individual set time by memory
  13. Automatically shuts down when water level is too low
  14. Temperature high limit switch
  15. Waterproof grade: IPX5
  16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  17. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  18. We will provide some spare parts to our customer as replacement.



Competitive Advantage:



We do rigorous quality control:
    1. Operational test of every steam generator before packing
    2. Power test.
    3. Earthing resistance test
    4. High voltage test
    5. Controller is tested for all functions
    6. 48 hour continual test for circuit board
