Payment & Shipping Terms:
|Material:||Stainless Steel 304 Or Stainless Steel316L||Filtration Micro Rating:||0.5um|
|Control Mode:||Automatic, Platform||Application:||Raw Water, Sewage, Solvents,gasoline,heavy Coker Gasoline,diesel Oil,residual Oil|

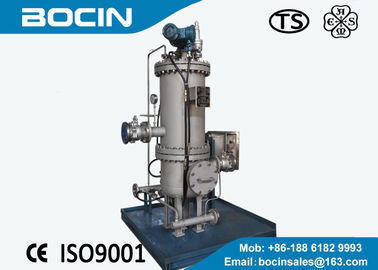

Double Drum Type Automatic Back Washing Filter system with platform
U - FC - S, double drum type automatic backwash filter is one of the core products in our company fully automatic filtration system, one with a case, applies to unattended filtering condition, which can realize 24-hour automatic operation.
This series of filter is applied in liquid filtration into motion, such as raw water, sewage, solvents, gasoline, heavy coker gasoline, diesel oil, residual oil and other liquids.The filter can be used for cleaning fluid, satisfy the requirement of the process under the cleanliness;Can also be used to protect critical equipment after, to avoid particle plugging, wear and tear or scaling causes the key equipment operation life shortened or operating efficiency.
The parameters are as follows:
Complete equipment with platform and automatic control system
1.6 million tons/year MZRCC device
Processing power: 15.2m cubed /h
The performance parameters:
|Working pressure: 0.1-2.5 Mpa|
|Working temperature: 190 ~ + 600 ℃|
|Filtration precision: 0.5 ~ 50 microns|
|Work flow: 1 ~ 100 t/H|
|Level of explosion-proof: d ii BT4, CT4|
|Work mode: automatic, manual (differential pressure, time)|
Features and properties:
According to the characteristics and content of impurities of different working conditions, increase the filter meet the maximum capacity.
The time control and differential pressure control, automatic filter cleaning operations.
More pipe design, step by step type backwashing, filtering operation does not need to clean because of the inverse operation of stopped.
4.full automatic control
Using programmable PLC and man-machine interface operation, monitor or adjust the filter system running state.
Don't need to field personnel frequent operation and monitoring, automatic control can save a lot of labor costs.
6.maintenance simple and easy
Taken from the high performance filter, low pressure loss, the high washing efficiency, long service life and low maintenance costs.
