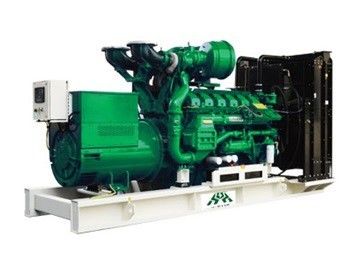

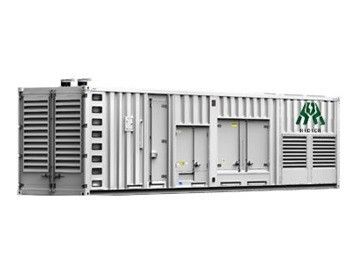

4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel

4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel
4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel 4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel

Large Image :  4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel

Product Details:
Place of Origin: Perkins Engine, assembled in China
Brand Name: HIDIER-Perkins
Certification: CE, CSA, NOISE, GS, EC-II, EPA, CARB, GOST.
Model Number: HDP1500/S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Plywood box
Delivery Time: Within 30 days
Payment Terms: T/T, L/C
Supply Ability: 1000pcs/week
Detailed Product Description
Output Capacity: 100/110kVA Output Power: 1380/1500kW
Genset Type: Hidier Engine: Perkins
Frequency: 50Hz / 60Hz Cooling Type: Water Cooled
High Light:

Perkins Diesel Generator Set

,

Perkins Diesel Genset

4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel







 HDP Series               HDP1380/ HDP1500S

Model

Standby Power

Prime Power

Engine

Alternator

Control Panel

KVA

KW

KVA

KW

Stamford

Hidier(Optional)

Model

HDP1500/S

1881

1505

1710

1380

4012-46TWG3A

PI734E

HD1400

MRS10



 Spec #1.1 Features

1

Excitation system: self-excited (AREP and PMG are optional)

2

ATS (automatic transfer switch) receptacle

3

Lockable battery isolator switch

4

Stainless galvanized zinc plates with strong corrosion resistance

5

Vibration isolators between the engine/alternator and base frame

6

Integrated wiring design

7

Base fuel tank for at least 8 hours running

8

Equipped with an industrial muffler

9

50℃ radiator

10

Top lifting and steel base frame with forklift holes

11

Drainage for fuel tank

12

Complete protection functions and safety labels

13

IP54 (soundproof sets), IP56 (control system)

14

Water jacket preheater, oil heater are available.

15

Double air cleaner, spare parts, special tools are available.

16

Custom-made is acceptable







































4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel 0  Ratings and Performance Data
Engine Brand & Model: Perkins 4102TWG3A
Alternator Brand & Model: Stamford I734E
Control System: ComAp InteliLite®MRS10
Noise Level@7m: 70.9-75.8
Frequency & Phase: 50Hz & 3 Phase
Engine Speed: RPM 1500
4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel 1 Structure Type: HDP1500
HDP1500S
Fuel Tank Capacity: L HDP1500   /
HDP1500S   /
Fuel Consumption: l/hr (100% Load) Prime 281
Standby 315
Generator Set Length (L) Width (W) Height (H) Net Weight kg
       Model mm mm mm
HDP1500 5300 2200 2400 10600
HDP1500S 12200 2400 3200 20200

Spec #1.2 Container Calculation

Generator Set Model

20’GP

pcs

40‘GP

pcs

40‘HQ

pcs

Efficiency

HDP1500

N/A

N/A

N/A

N/A

HDP1500S

N/A

N/A

N/A

N/A



Spec#2  Engine         Perkins 4102-46TEG3A







4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel 2

Spec #2.1 General Data

Number of cylinders

12

Cylinder arrangement

Vee, 60°

Cycle

4 stroke

Induction system

Turbocharged

Combustion system

Direct injection

Compression ratio

13:1

Bore and Stroke

160 x 190 mm (6.3 x 7.5 in)

Cubic capacity

45·842 litres

Direction of rotation

Anti-clockwise viewed on flywheel

Cooling system

Water cooled

Total coolant capacity

316 litres

Total lubrication system capacity

237.2 litres (62.7 US gals)

Dimensions

L 5300mm

W 2200 mm

H 2440mm

Total weight (dry)

6450 kg



Spec #2.2 Engine Output

Speed

rpm

Run Type

Typical Output (Net)

Engine Power

Gross

Net

kVA

kWe

kWm

hp

kWm

hp

1500

Prime

1710

1380

1500

2012

1440

1931

Standby

1880

1505

1643

2203

1583

2123

1800

Prime

1710

1380

1500

2012

1440

1931

Standby

1880

1505

1643

2203

1583

2123

*Subject to conformance with ASTM D6751 and EN14214.

The above ratings represent the engine performance capabilities to conditions specified in ISO 8528/1, ISO 3046/1:1986, BS 5514/1. Derating may be required for conditions outside these; consult Perkins Engines Company Limited. Generator powers are typical and are based on typical alternator efficiencies and a power factor (cos θ) of 0.8.

Fuel specification: BS 2869: Part 2 1998 Class A2 or ASTM D975 D2.

Rating Definitions:

Prime Power: Power available at variable load in lieu of a main power network. Overload of 10% is permitted for 1 hour in every 12 hours operation.

Standby (maximum): Power available at variable load in the event of a main power network failure. No overload is permitted.



Spec #2.3 Fuel System

Type of injection

Direct

Fuel injection pump

Combined unit injector

Fuel injector opening pressure

234 bar

Delivery/hour at 1500 rpm

1380 litres

Electronic governor (optional)

Heat retained in fuel to tank..

Fuel lift pump

Fuel lift pump pressure

300 kPa

maximum suction head

2.5 m

maximum pressure head

see Installation Manual

Fuel filter spacing

10 microns

Governor type

.Electronic

Torque at the governor output

1.631 kgm

Fuel specification

USA Fed Off Highway - EPA2D 89.330-96

Europe Off Highway - CEC RF-06-99

Fuel Consumption

Engine Speed

g/kWh

Litres/hr

1500

1800

1500

1800

At Standby Max power

215

-

490

-

At Prime Power rating

210

-

436

-

75% of prime power

202

-

315

-

50% of prime power

202

-

210

-



Spec #2.4 Cooling System

Total coolant capacity

Engine only

73 litres

Electropak (engine and radiator):

-temperate

207 litres

-tropical

210 litres

Thermostat operating range

71 - 85 °C

Coolant temperature shutdown

101 °C rising

Coolant immersion heater

4 kWe each

Radiator

Radiator face area

3,46 m²

Material and number of rows:

-charge air and water jacket

copper, 4 rows

Fins per inch and material:

-charge air and water jacket

brass, 12 rows

Water jacket cooling data

Temperate and Tropical -coolant flow

1020 litres/min

-coolant exit temperature (max) .

98 °C

-coolant inlet temperature (min)

thermostatic control

Max permissible external system resistance

kPa

Thermostat operation range

82 - 93 °C

Max. static pressure head on pump

30.4 kPa

Recommended coolant

50% anti freeze / 50% water. For complete details of recommended coolant specifications, refer to the

Operation and Maintenance Manual for this engine model.

Duct allowance

Maximum additional restriction (duct allowance) to cooling airflow and resultant minimum airflow

Ambient clearance 50% Glycol

Duct allowance Pa

m³/sec

N/A

N/A

N/A

N/A

N/A

N/A

Spec #2.5 Induction System

Maximum static bending moment

at rear face of block

1400 Nm

Maximum air intake restriction

-clean filter.

2 kPa

-dirty filter

4 kPa

-air filter type

Medium duty axial flow

Spec #2.6 Electrical System

type

Insulated return

alternator

24 volts with integral regulator

starter motor

24 volts

Starter motor power

16.4 kW

Number of teeth on flywheel

159

Number of teeth on starter motor..

12

Minimum cranking speed (0°C)

120 rpm

Cold start recommendations

Minimum engine cranking speed over TDC

120 rev/min

Minimum

starting

temperature

Grade of

engine

lubricating

oil

Battery specifications

°C

BS3911

Cold

start

amps

SAEJ537

Cold

cranking

amps

Number

of

batteries

needed

Commercial

ref number

0

20W

540

740

1

647

-15

10W

540

740

1

647

-20

5W

600

780

1

655



Spec #2.7 Exhaust System

Exhaust outlet size (internal)

2 x 254 mm Table D flanges

Back pressure for total system

5 kPa

Emissions statement: Constant Speed Engines for use in Industrial, IOPU and ElectropaK applications: Certified against the requirements of EU Stage IIIA (Directives 97/68/EC, as last amended, for mobile applications).

Spec #2.8 Lubrication System

Lubricating oil capacity



-total system capacity

177 litres

-sump maximum

157,5 litres

-oil temperature at normal operating conditions to bearings 105 °C

Lubricating oil pressure

-at rated speed

400 kPa

-minimum at 80 °C

340 kPa

-oil relief values open

400 kPa

-oil filter spacing

20 microns

-oil pump speed

2100 rev/min

Normal operating angles

Front and rear ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .... .....  5°

Side tilt .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 10°



Spec#3  Alternator     StamfordUCI224G

CONTROL SYSTEM

SEPARATELY EXCITED BY P.M.G.

A.V.R.

MX341

MX321



VOLTAGE REGULATION

± 1 %

± 0.5 %

With 4% ENGINE GOVERNING

SUSTAINED SHORT CIRCUIT

REFER TO SHORT CIRCUIT DECREMENT CURVES

INSULATION SYSTEM

CLASS H

PROTECTION

IP23

RATED POWER FACTOR

0.8

STATOR WINDING

DOUBLE LAYER LAP

WINDING PITCH

TWO THIRDS

WINDING LEADS

6

MAIN STATOR RESISTANCE

0.00093 Ohms PER PHASE AT 22°C  STAR CONNECTED

MAIN ROTOR RESISTANCE

2.17 Ohms at 22°C

EXCITER STATOR RESISTANCE

17.5 Ohms at 22°C

EXCITER ROTOR RESISTANCE

0.063 Ohms PER PHASE AT 22°C

R.F.I. SUPPRESSION

BS EN 61000-6-2 & BS EN 61000-6-4,VDE 0875G, VDE 0875N. refer to factory for others

WAVEFORM DISTORTION

NO LOAD < 1.5%  NON-DISTORTING BALANCED LINEAR LOAD < 5.0%

MAXIMUM OVERSPEED

2250 Rev/Min

BEARING DRIVE END

BALL. 6228 C3

BEARING NON-DRIVE END

BALL. 6319 C3



1 BEARING

2 BEARING

WEIGHT COMP. GENERATOR

3556 kg

3506 kg

WEIGHT WOUND STATOR

1747 kg

1747 kg

WEIGHT WOUND ROTOR

1494 kg

1432 kg

WR² INERTIA

45.49 kgm2

44.4891 kgm2

SHIPPING WEIGHTS in a crate

3629kg

3575kg

PACKING CRATE SIZE

216 x 105 x 154(cm)

216 x 105 x 154(cm)



50 Hz

60 Hz

TELEPHONE INTERFERENCE

THF<2%

TIF<50

COOLING AIR

2.69 m³/sec  5700 cfm

3.45 m³/sec  7300 cfm

VOLTAGE STAR

380/220

400/231

415/240

440/254

416/240

440/254

460/266

480/277

kVA BASE RATING FOR REACTANCE VALUES



1845



1900



1900



1865



2070



2210



2255



2300

Xd DIR. AXIS SYNCHRONOUS

3.18

2.96

2.75

2.40

3.84

3.67

3.42

3.21

X'd DIR. AXIS TRANSIENT

0.19

0.18

0.17

0.15

0.23

0.22

0.21

0.19

X''d DIR. AXIS SUBTRANSIENT

0.14

0.13

0.12

0.11

0.17

0.16

0.15

0.14

Xq QUAD. AXIS REACTANCE

2.04

1.90

1.76

1.54

2.47

2.36

2.20

2.06

X''q QUAD. AXIS SUBTRANSIENT

0.29

0.27

0.25

0.22

0.35

0.33

0.31

0.29

XL LEAKAGE REACTANCE

0.04

0.03

0.03

0.03

0.04

0.04

0.04

0.04

X2 NEGATIVE SEQUENCE

0.20

0.19

0.17

0.15

0.24

0.23

0.22

0.20

X0 ZERO SEQUENCE

0.02

0.02

0.02

0.02

0.03

0.03

0.03

0.03

REACTANCES  ARE SATURATED                                   VALUES ARE PER UNIT AT RATING AND VOLTAGE INDICATED

T'd TRANSIENT TIME CONST.

0.149s

T''d SUB-TRANSTIME  CONST.

0.02s

T'do O.C. FIELD TIME CONST.

2.46s

Ta ARMATURE TIME CONST.

0.02s

SHORT CIRCUIT RATIO

1/Xd



Spec#4 Control System ComAp InteliLite® MRS10

4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel 3







4-Stroke 1500KW Perkins Diesel Genset With Automatic Control Panel 4



Spec #4.1 Features

1

Automatic or manual start/stop of the gen-set

2

Push buttons for simple control, lamp test

3

Lockable battery isolator switch

4

Graphic back-lit LCD display 128×64 pixels

5

2 LED indicators

6

Integrated wiring design

7

Parameters adjustable via keyboard or PC

8

Generator measurements (50/60 Hz):U1-U3, I1-I3, Hz, kW, kVAr, kVArh, kWh

9

Selectable protections alarm/ shutdown

10

3 phase Generator protections

– Over-/under voltage

– Over-/under frequency

– Current/voltage asymmetry

– Overcurrent/overload

11

Analog oil pressure, water, temperature, fuel level, battery, voltage, engine speed (pick-up)

12

Configurable programmable inputs and outputs

13

Warm-up and cooling functions

14

RS232 interface (AT-LINK CONV cable is necessary for IL-MRS 10)

15

Dimensions 180×120 mm (front panel)

16

Sealed to IP65

17

Custom-made is acceptable

Spec #4.2 Functions

Binary inputs/oupputs

6/6

Analog inputs

3

Pick-up

-

AMF function

-

Input configuration

Output configuration

Voltage measurement Gen./Mains

3ph/-

Current measurement

3ph

KW/KWH measurement

●/-

GCB/MCB control with feedback



Extension units(periph)

-

Communication interfaces

Rs232

Modem support

-

Battery charging alternator circuit

Spec #5 Options



Items

Options

Select

Engine

Water Jacket Preheater



Oil Preheater



Alternator

Winding Temperature Measuring Instrument



Alternator Preheater



PMG



Anti-damp and anti-corrosion treatment



Anti-condensation heater



Generator Set

Tools with the machine

STND

Fuel System

Low fuel level alarm



Automatic fuel feeding system



Fuel T-valves



Enclosure

Open Type



Silent/Super Silent Type



Trailer Type



Canopy/Enclosure Type



Lubricating sys

Oil with the machine



Exhaust Sys.

Protection board from hotness



Cooling Sys.

Front heat protection



Coolant (-30°C)



Control System

Remote Control System



ATS Control System



Auto Synchronizing System



Generator Set Output Cabinet



Control Panel

Czech·ComAp

STND

China·Hidier



Denmark·Deif



U.K.·Deepsea



Voltages

415/240V



400/230V



380/220V



220/127V



200-115V





Contact Details
China Adhesive Dispensing Machine Online Market

Contact Person: Mr. zhang

Tel: 1881089090

Send your inquiry directly to us (0 / 3000)
