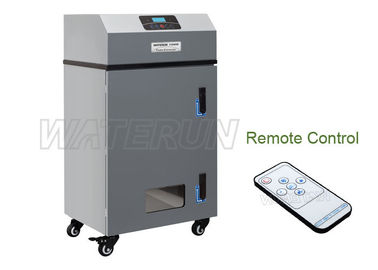

Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber

Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber
Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber

Large Image :  Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber

Product Details:
Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F3000D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 55x45x90cm/set, 45kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Detailed Product Description
Type: Fume Extractor Filter: Prefilter And 5 Pieces Glass Filters And Actived Filers And PET Filters
Noise: Less Than 70 DB Dimension: 420x320x785mm
Voltage/Power: 110V-220V 450W Systemic Flow: 400m3/h
Feature: DC Brushless Motor Weight: 31kg
High Light:

portable welding fume extractor

,

weld fume extractors



Electric Solder / Welding Smoke Eliminator for Filtering The Harmful Fumes



Specifications:



Model Number:

F3000D

Input Power

330W

Voltage/Power:

AC110-220V

Systemic Flow:

400m3/h

Filtering Efficiency:

0.3micron 99.97%

Length of Duct:

Dia.90mm x1.4m

Noise:

Less than 70db

Dimensions(mm)

420 x 320 x 785

Net weight

31kgs



Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber 0Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber 1Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber 2Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber 3Electric Solder / Welding Smoke Handler for Filtering Fumes , Soldering Smoke Absorber 4

Description:



We, Waterun Technology has successfully developed a series of Fume Purifying & Filtering System, It is for cleaning of both particles and gases. It is designed to filter the harmful substances, such as hydrocarbon and cyanide, during the process of soldering, welding, tin dipping in the solder pot, laser marking & caving, printing etc. It catches harmful smoke with freestanding ducts and adjustable air volume to significantly improve your working environment. Our mission is to stay away from air pollution on human health.The advantage is the high voltage and large volume brushless motor. With truly sensitive and effective “filter clogging alarm system” Multiple filtering ensure through purifying efficiency. Equipped with the remote control, the operator can control the machine from a distance.It was designed by our company especially for waste gas and odor of tin furnace melting furnace Soldering welding argon arc welding, plasma cutting ink operation emissions, odor.





Features:



1. With Alfa movable arm that the Fume Extractor can be stopped in any position of the three -dimensional space, the workers can work more efficiently.



2. The Machine  is easy to operate and maintain: when maintaining, what needed to be done is just to open the assess door and take out the electric field to soak and wash.



3. Pollution source can be treated by movable single machine or be treated in multi-station concentrated handling mode.



4. Low altitude emission of the processed air guaranteed.



5. This kind of  Machine has incomparable disposal efficiency: at rated air volume, the welding fume elimination efficiency is above 99.97%, thus can discharge directly in the workshop.



6. Our Fume Extractor is specially designed for industrial welding fume and light weight particles, can be widely applied to many places that produce dust and oil fume and industries such as electronic wave soldering, metal processing, laser cutting, etc. It is very light and flexible. With a 1.4M long movable flexible pipe, it can be moved to different locations.



7. Safe and stable: the  Machine has automatic detection and malfunction diagnosis function.



8. Metal body structure, strong and durable;



9. Noise reduction design creates a quiet and comfortable enviroment;



10. Multiple filter design ensures thorough fume purification;



11. With the digital display and remote control, operation becomes easy and simple;



12. Truly sensitive and effective Filter Clogging Alarm System reminds you to replace the filter in time.





Applications:



Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations. Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Don’t despair if you don’t see your application listed below. Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!



1.

 soldering fume extractor

2.

 laser cutting, laser engraving and marking

3.

 electronics Manufacturing

4.

 welding, laser welding

5.

 medical, moxibustion, moxa-moxibustion

6.

 beauty fume extraction

7.

 Pharmaceutical and laboratories, chemical

8.

 3D printing

9.

 dust collector





Competitive Advantage:



1. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.





2. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.





3. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.
