|Material:||CS,SS||Filtration Rating:||25-3500 Microns|
|Flowrate (m3/h):||<3500 M3/h||Style:||Automatic Back Flushing|

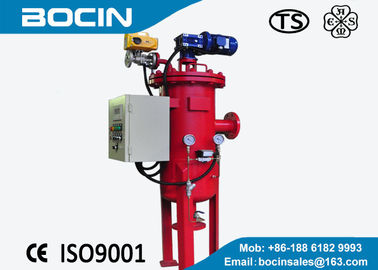

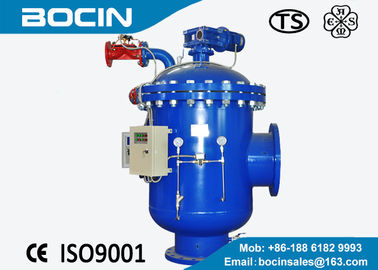

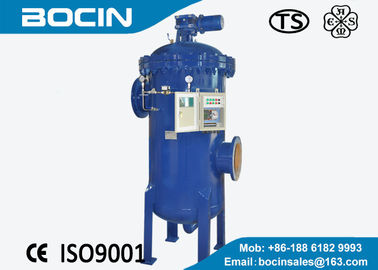

UNITE sucking type multi-filter elements automatic back flush filter
U-ZC-XD1/XD2 automatic sucking type multi-filter elements back flush filter is suitable for the impurities filtration of high flow, high speed, low viscosity fluid.
Automatic backwash filters are electromechanical integrated products with advantages of reasonable design, high filtering efficiency, low operation cost, continuous filtration even during the backwash process,etc. They are widely used in metallurgy petrochemistry, electricity, oil field water injection, ship ballast water, sea water utilization, environmental protection water treatment and many other fields.
1. The filtering device adopts the patent technology of internal mechanical structure, to realize the function of backwash in the true sense, can thoroughly remove strainer intercept the impurities, no deed corner in cleaning, buy without attenuation, guarantee the filtration efficiency and long service life;
2. The filtering equipment selection, 304, 316 l, 2205, MONEL, etc;Wedge filter material, strength, high accuracy, corrosion resistance, high filtration affection degrees can be up to 25 microns;
3. The filtering equipment through its retrieval and strain function, automatic backwash, can deal with unstable water quality fluctuation, without human intervention;
4. Responsive filtering equipment control system, operating precision, can be adjusted according to different water sources and filtration precision backwash differential pressure and time value;
5. Filtration equipment in the process of backwash, groups of filter backwash operations in turn;To ensure safe and efficient filter cleaning, while the other mesh is not affected and continue to filter;
6. Filtration equipment adopts pneumatic drain valve, backwash lasted short, backwashing water in the water consumption, less environmental economy;
7. Filtration equipment design compact and reasonable structure, cover an area of an area small, easy installation and flexible mobile;
8. Filtration equipment wearing parts for equipment is less, no consumables, low operation maintenance cost, simple operation management;
9. Filtration equipment working condition set by touch screen display, differential pressure and time convenient and intuitive.
1. Sea water desalination
2. Oil field recycling water
3. Boiler recycling
4. Ion-exchange pretreatment
5. Circulating cooling water
6. Ship's ballast water
7. Ultrafiltration, reverse osmosis filter
8. Paper nozzle filter
|Model||filter element qty||filter element size||A(mm)||B(mm)||C(mm)||D(mm)||Inlet/outlet||drain(mm)||flowrate(m3/h)|
