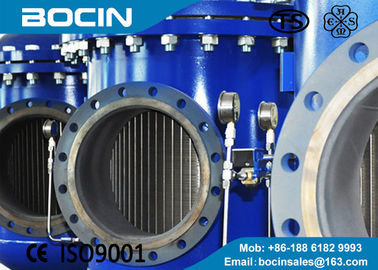

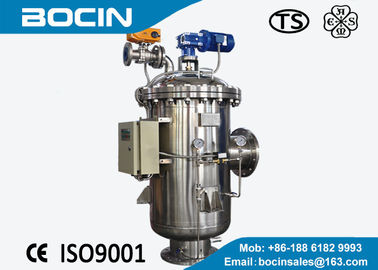

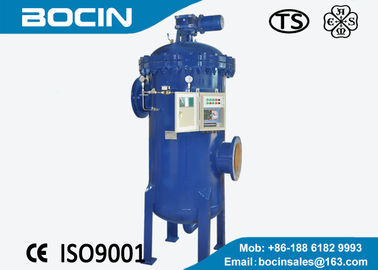

Large flow rate Automatic Self Cleaning Filter for utility water filtration

China Large flow rate Automatic Self Cleaning Filter  for utility water filtration supplier
Large flow rate Automatic Self Cleaning Filter  for utility water filtration supplier Large flow rate Automatic Self Cleaning Filter  for utility water filtration supplier Large flow rate Automatic Self Cleaning Filter  for utility water filtration supplier

Large Image :  Large flow rate Automatic Self Cleaning Filter for utility water filtration

Product Details:

Place of Origin: CHINA
Brand Name: UNITE
Certification: ASME, ISO, ABS
Model Number: U-ZC-S1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: about 30 days
Payment Terms: T/T, L/C
Supply Ability: 50 Sets / Month
Contact Now
Detailed Product Description
Material: CS Lining,stainless Steel, 2205 Filter Screen: Wedge Screen Wire
Flow Rate: Max 8000m³/h Inlet/outlet Diameter: 2''-36''
Precision: 25-3500um Specifications: ASME SEC VIII DIV.1

Automatic Brush Type Self Cleaning Filter For Sea Water Filtration System



Description:

U-ZC-S self cleaning filter is a new type of self-cleaning strainer independently developed by Jiangsu Unite with our own intellectual property. It is designed for continuous online filtration to remove impurities on the outer surface of filter screen via highly-efficient stainless steel brush.



U-ZC-S self cleaning filter is mainly designed for high-viscosity and soft impurities filtration, with the precision range being 25-3500 μm. Featuring precise filtration can effectively remove impurities from the surface of filtering screens, thus removing more impurities with high efficiency.



Filtration:

Liquid flows inside from the inlet. The liquid flows inward from the outer surface of the filter screen, and the impurity is intercepted on the outer surface. Then, the liquid flows out from the outlet; with the passage of time, the impurities gradually increase, and differential pressure rises. We can begin to clean the filter screen according to the preset differential pressure or the timing.



Cleaning:

The motor drives the brush to rotate horizontally to clean the filter screen. When the brush rotates, impurities are brush off and filtered along the filter net to the bottom of the filter, and the impurities with large specific gravity are deposited into the dirty collector. Each cleaning is made up of a number of strokes. After the filter screen is cleaned, the filtering ability is restored. No filtration interruption while self-cleaning.

Discharge:

After a number of cleaning cycles, impurities accumulate to a certain amount. Regular opening of drain valve, and the waste liquid containing high concentration of impurities is discharged. which can also be recycled, if necessary.

Technical features and advantages:

1. Horizontal rotary brush, brush off the impurities directly, is good at filtering viscous liquids and removal of viscous, soft and suspended impurities;
2. Simple structure, easy dismounting; after removing the brush, easy to take out the filter screen, and easy to clean the inside;
3. Automatic operation, continuous online filtration, to end up the heavy filter screen replacement and cleaning work;

4.Discharge waste liquid with high impurities concentration can be recycled, to reduce the loss of high-value materials
5. Small filtration pressure loss, stable flow rate, energy saving is beneficial to the continuous stability of the whole process;
6. Sealed filtration, preventing dangerous material leakage, is advantageous to the safe production and the staff health;





Model ZC-S1-219 ZC-S1-273 ZC-S1-325 ZC-S1-426 ZC-S1-530 ZC-S1-630 ZC-S1-720 ZC-S1-820 ZC-S1-920 ZC-S1-1020
Inlet/outlet(DN) 50 80 100 200 250 300 350 400 450 500
drain(DN) 25 25 25 50 50 80 80 80 80 80
folw rate(m3/h) 20 50 150 300 500 700 1100 1500 2000 2500
A(mm) 830 830 830 1190 1190 1460 1520 1600 1740 1850
B(mm) 500 500 500 550 600 785 785 785 900 900
D(mm) 219 273 325 426 530 630 720 820 920 1020
L1(mm) / / / 325 325 325 400 450 450 530
L2(mm) 210 235 285 350 415 415 510 600 660 710
