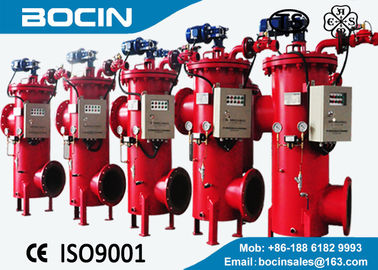

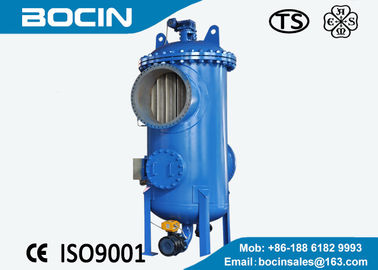

Brush Automatic self cleaning filters for chiller water filters large flow range

China Brush Automatic self cleaning filters for chiller water filters large flow range supplier
Brush Automatic self cleaning filters for chiller water filters large flow range supplier Brush Automatic self cleaning filters for chiller water filters large flow range supplier Brush Automatic self cleaning filters for chiller water filters large flow range supplier

Large Image :  Brush Automatic self cleaning filters for chiller water filters large flow range

Product Details:

Place of Origin: CHINA
Brand Name: UNITE
Certification: ASME, ISO, ABS
Model Number: U-ZC-S1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: about 30 days
Payment Terms: T/T, L/C
Supply Ability: 500 Sets/ Month
Contact Now
Detailed Product Description
Material: CS / SUS304 / SUS316L Filtration Rating: 25-3500 Microns
Flow Rate (m3/h): <3500 M3/h Cleaning Type: Brush
Size: Customized Cleaning Pressure: 0.05MPa

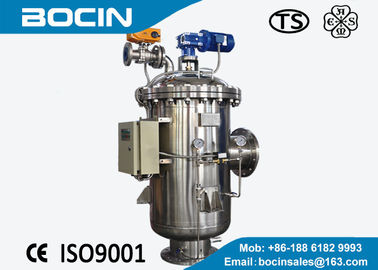

25um Brush Auto self cleaning filters Stainless Steel brush type

Description:
UNITE all series filtration solution can meet kinds of different water quality in industry area, our professional system design is made and provided according to each customer’s requirement to solve water treatment efficiently, by global sales network and close cooperation with customers, our manufacture capability, rich experience and technology ability can help you reduce costs, reduce energy consumption, improve the quality.

Filtration:

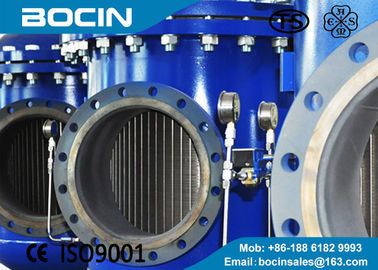

The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.

Self cleaning:
When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts.
It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.

Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC.

Advantages:wide filtration range,short flushing time,low water consumption,low pressure loss etc.

Technical parameters:



Single filter flow(max) 5000m3/h
Filtration range 20-4000 micron
Working pressure 0.2-1.0 Mpa
Power supply 380 v / 50 Hz , AC24V
Control modes Pressure difference/time/manual/PLC
Shell material Carbon steel/304 stainless steel/316L
Screen material 304 stainless steel/316L



Model ZC-S2-273 ZC-S2-325 ZC-S2-426 ZC-S2-530 ZC-S2-630 ZC-S2-720 ZC-S2-820 ZC-S2-920 ZC-S2-1020
Inlet/outlet(DN) 80 100 200 250 300 350 400 450 500
drain(DN) 25 25 50 50 80 80 80 80 80
flow rate(m3/h) 50 150 300 500 700 1100 1500 2000 2500
A(mm) 950 1070 1275 1445 1600 1620 1735 1825 1850
B(mm) 620 620 785 845 1000 1020 1035 1125 1200
C(mm) 150 150 150 150 200 200 200 200 200

















Installation:

When the equipment leaving the factory, cables among the control system, the washing machine,the electric drain valve and the pressure differential controller are connected well, you only need to connect the power cords set aside by the control box in installation.



When you are choosing automatic screen filters, please consider the following parameters:

· Flow capacity( m3/h)

· Media

· Shell material

· Precision

· Working pressure

· Working temperarure
