| Material: | CS,SS,2205 | Filtration Rating: | 25-3500 Microns |
|---|---|---|---|
| Flowrate (m3/h): | <3500 M3/h | Application: | Water Treatment |
| Drive Way: | Motor Drive | Contronl Way: | Pressure Difference/time/manual/PL |
| High Light: | self cleaning filters,industrial water filters |
||

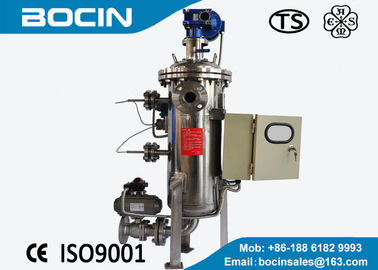

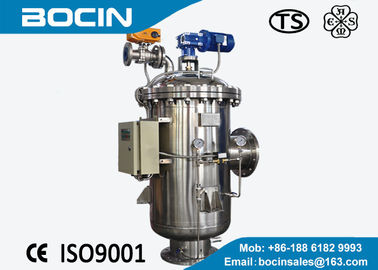

Automatic Brush Type Self Cleaning Filter For sewage water filtration with 304 material
Description:
U-ZC-S self cleaning filter is made up of the stainless steel wire brush and transmission part. The washing and the drainage are automatically finished by the drive motor and electrical valve. The operation way is automatic running , It is with the double function of the pressure difference and regularly automatic drainage. The automation part takes use of the most advanced and reliable PLC.
When the water flow gets through the filter, the impurity in the water is held by the filter screen ,with the increase of the impurity accumulated on the surface of the strainer, the pressure difference reaches 0.5bar. The switch of the pressure difference will give out a signal while the PLC sends an instruction to start the drive motor and open the drainage valve; the impurity accumulated on the strainer will be brushed off with the rotating brush and discharged from the drainage exit. The whole process of brushing and draining require no personal operation and without machine halt. At the same time, the equipment is with the function of regular washing and draining and manual washing and draining to make sure that the water output is safe and reliable in any case.
Applicable Industries and Liquids :
1.Applicable industries: Water treatment, steel, pulp and paper, mining, petro-chemical, machining, municipal, irrigation etc.
2.Typical applicable liquids: Groundwater, seawater, lake, reservoir water, pond water, cooling water circulation, frozen water, high and low voltage gush to drench water, squirt water, heat water, seal water, bearing cooling water, oil wells note water, process of circulating water, machining coolant, cleaning agents, cleaning water, etc.
3.Filtration function: Remove large particles, purify liquids, protect critical equipment
4.Filtration type: Back-flushing filter, automatic continuously online filtration
| Filter flow | 20-5000 m³/h |
| Max. recommended working pressure | 10 kg |
| Min. operating working pressure during backwash | 2 kg |
| Water temperature range | 0 ~ 70 °C |
| Available filtration | 20-4000micron |
| Connections | Flange |
| Backwash time | 20-30 seconds |
| Water consumption during backwash | 1%-3% of filtered water |
| Control model | PLC / Timer / Manual |
| Cleaning way | Brush |
| Drive way | Motor drive |
| Filter element | Stainless steel |
| Filter housing material | Carbon steel / SS304 / SS316 |
| Sewage way | Fully automatic |
| Installation | Vertical / Horizontal |
| Rated operating voltage | 3ph/380V/50Hz or Customized |
