High quality, Best service,Reasonable price.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | AB Glue Cartridge , 50ml 1:1 Dual Cartridge , Syringe Barrel | Classification: | Double Components Adhesives |
|---|---|---|---|
| Main Raw Material: | PE | Standard: | CE/ROHS |
| Color: | White | Cartridge Type: | Two-component |
| Function: | For Packing AB Adhesive, Sealant, Epoxy Etc. | Plastic Modling Type: | Injection |

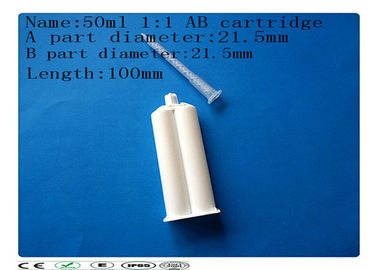

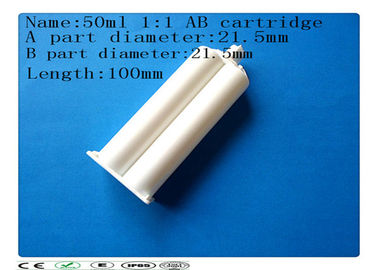

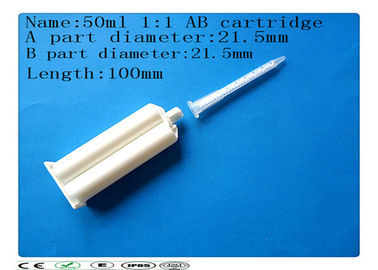

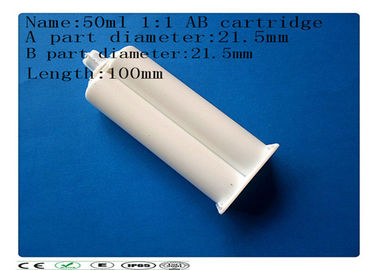

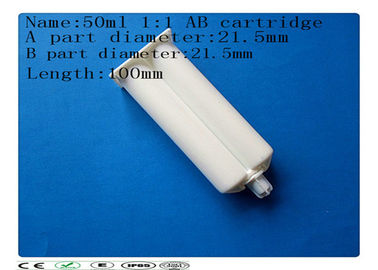

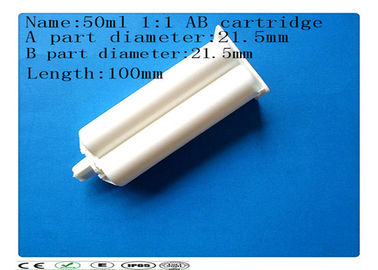

AB glue cartridge , 50ml 1:1 dual cartridge , Syringe Barrel
Specifications
Part No:50ml 1:1
material:PBT
Ratio:1:1
A diameter:21.5mm
B diameter:21.5mm
Length:100mm
Caulking gun series AB glue cartridge, dual cartridge, caulking gun cartridge , cordless caulking gun and iron caulking gun, while we also produce cartridges which include one-component cartridge for silicon sealant and two-component component cartridge for epoxy adhesive such as 50ml(1:1,2:1), 200ml(1:1), 360ml(5:1), 400ml(1:1), 450ml(2:1), 600ml(1:1).
| 50ml 1:1 AB glue cartridge, dual cartridge, caulking gun cartridge | ||||
| Product NO | ratio | A diameter | B diameter | length |
| 50ml 1:1 | .1:1 | 21.5mm | 21.5mm | 100mm |
| 50ml 2:1 | .2:1 | 25mm | 18mm | 100mm |
| 50ml 4:1 | .4:1 | 25mm | 14mm | 100mm |
| 50ml 10:1 | .10:1 | 25mm | 10mm | 100mm |
| new 50ml 1:1 | .1:1 | 22mm | 22mm | 125mm |
| new 50ml 2:1 | .2:1 | 25mm | 18mm | 125mm |
| new 50ml 4:1 | .4:1 | 31.5mm | 125mm | |
| new 50ml 10: | .10:1 | 31.5mm | 11mm | 125mm |
| 200ml 1:1 | .1:1 | 37mm | 37mm | 150mm |
| 235ml 1:1 | .10:1 | 50mm | 18mm | 150mm |
| 345ml 1:1 | .10:1 | 50mm | 18mm | 215mm |
| 360ml 5:1 | .5:1 | 50mm | 25mm | 215mm |
| 385ml 3:1 | .3:1 | 55mm | 33mm | 160mm |
| 400ml 1:1 | .1:1 | 45mm | 45mm | 185mm |
| 450ml 2:1 | .2:1 | 50mm | 37mm | 215mm |
| 585ml 3:1 | .3:1 | 55mm | 33mm | 235mm |
| 600ml 1:1 | .1:1 | 50mm | 50mm | 215mm |
| 1500ml 1:1 | .1:1 | 79mm | 79mm | 215mm |
service:
1. We can make part design and mould design by software CAD,UG,PRO/E,Solidworks and Catia ect.
2. Available for OEM/ODM service and very super precision reachs to 0.001mm.
3. Standard mould base.
4. Send sample with test video to customers for check product quality and mould working condition.
5. During the period of making the mould,we'll report the process of the mould with pictures every Monday.
6. Customer's design are welcomed..
7.Competive price with on-time delivery.
Company information:
Vision Plastic Co., Ltd. is a dispensing syringes, adapters, dispensing needles, mixing tube, AB hose, metal products, AB glue cartridge, dual cartridge, caulking gun cartridge , injection molding, mold making products such as professional production and processing manufacturing enterprises. The company is headquartered in the, ZhangMuTou town Da Keshan Industrial Zone; company has a complete and scientific quality management system, and at the same time, the company also has a strong production capacity, have their own independent R & D department, mold department, injection, production and assembly department and quality detection unit, the company's integrity, strength and quality of products recognized by the industry.
Contact Person: Mr. zhang
Tel: 1881089090
