| Product Name: | Disposable Static Mixer/VMC Round Mouth White Static Mixer | Application: | Mixing Glue |
|---|---|---|---|
| Mixer Type: | Static Mixer | Standard: | CE/ROHS |
| Color: | Blue,green,white | Material: | Plasitic |
| Model: | VMT | Elements: | 18s.17s.24s |
| Size: | Can Be Customed | ||
| High Light: | plastic static mixer,Static Mixer Nozzle |
||

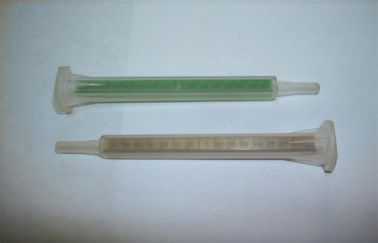

Disposable Static Mixer/VMC Round mouth white static mixer
Specifications:
1. Excellent-mixing
2. Used for mixing AB arylic adhesives, sealants and epoxies
3. CE Certificate
The VMC static mixer apply to 200ml,400ml,600ml and 1500ml AB glue cartridge.
Specially designed according to the fluid core science, Simple operation, effort,
VMC apply to 1:1, 2:1, VMCX apply to 4:1, 10:
| Prat No | Inner Dia.I.D | Number of Elements | Outer Dia.O.D. | Length L(mm) | Nozzle Dia.A | Approx.Vol(ml) |
| MA3.0-4S | 3 | 4 | 4.6 | 36.2 | 1 | 0.2 |
| Y3.0-4 | 3 | 4 | 4.6 | 37.6 | 1 | 0.2 |
| MA3.0-8S | 3 | 8 | 4.6 | 36.2 | 1 | 0.2 |
| Y3.0-8 | 3 | 8 | 4.6 | 37.6 | 1 | 0.2 |
| MA3.0-8D | 3 | 8 | 4.6 | 62.2 | 1 | 0.34 |
| MA3.0-17S | 3 | 17 | 4.6 | 62.2 | 1 | 0.34 |
| MA5.4-17S | 5.4 | 17 | 7.6 | 103.6 | 1.5 | 1.68 |
| MA6.3-20S | 6.35 | 20 | 8.7 | 146 | 1.5 | 3.2 |
| MA6.3-20L | 6.35 | 20 | 8.7 | 148.9 | 1.6 | 2.95 |
| MA6.3-21S | 6.35 | 21 | 8.7 | 153 | 1.5 | 3.57 |
| MA6.3-21L | 6.35 | 21 | 8.7 | 151.5 | 1.6 | 3.33 |
Note:
The mixers are disposable products. Re-use can cause cross-infection. Do not re-use it. Please keep them with the proper storage, use and maintenance , the mixers have no obvious Expiration.
Device of combination: The mixing tips should be used together with Cartridges and Dispenser. Attach to the dispenser and cartridge, conveniently uniform mixing 1:1 and directly inject to the tray
When disposal, please follow the related regulation in your region
Advantage:
Smooth surface
Mix AB material evenly
Many varieties are available,specification can be customized
Lead time is short,Package is good.
Factory,low cost & good service
