Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5-32 Static Mixer Nozzle/ Dispensing Static Mixer | Type: | 5.32 |
|---|---|---|---|
| Mixer Type: | Static Mixer | Standard: | CE/ROHS |
| Color: | White | Material: | Plastic |
| Length: | 103mm | Elements: | 17s |
| Out Diameter: | 5mm | ||
| High Light: | epoxy mixing nozzle,Dispensing static mixer |
||

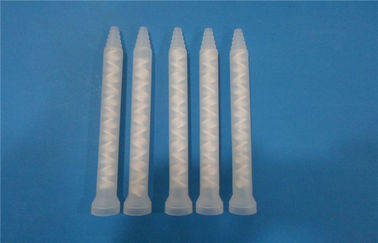

5-32 static mixer nozzle/ Dispensing static mixer
Specifications:
The satic mixers are disposable products. Re-use can cause cross-infection. Do not re-use it. Please keep them with the proper storage, use and maintenance , the mixers have no obvious Expiration. Device of combination: The mixing tips should be used together with Cartridges and Dispenser. Attach to the dispenser and cartridge, conveniently uniform mixing 1:1 and directly inject to the tray When disposal, please follow the related regulation in your region
| Prat No | Inner Dia.I.D | Number of Elements | Outer Dia.O.D. | Length L(mm) | Nozzle Dia.A | Approx.Vol(ml) | Box Qty |
| MA3.0-4S | 3 | 4 | 4.6 | 36.2 | 1 | 0.2 | 300 |
| Y3.0-4 | 3 | 4 | 4.6 | 37.6 | 1 | 0.2 | 500 |
| MA3.0-8S | 3 | 8 | 4.6 | 36.2 | 1 | 0.2 | 300 |
| Y3.0-8 | 3 | 8 | 4.6 | 37.6 | 1 | 0.2 | 500 |
| MA3.0-8D | 3 | 8 | 4.6 | 62.2 | 1 | 0.34 | 1000 |
| MA3.0-17S | 3 | 17 | 4.6 | 62.2 | 1 | 0.34 | 1000 |
| MA5.4-17S | 5.4 | 17 | 7.6 | 103.6 | 1.5 | 1.68 | 500 |
| MA6.3-20S | 6.35 | 20 | 8.7 | 146 | 1.5 | 3.2 | 500 |
| MA6.3-20L | 6.35 | 20 | 8.7 | 148.9 | 1.6 | 2.95 | 500 |
| MA6.3-21S | 6.35 | 21 | 8.7 | 153 | 1.5 | 3.57 | 500 |
| MA6.3-21L | 6.35 | 21 | 8.7 | 151.5 | 1.6 | 3.33 | 500 |
Specifications
1. for mixing AB acrylic adhesives in Marble, Surface Solie&Waterproof
2. Well mixing
3. POM element, PP tube
4. CE/OEM
Intended use
The mixing tip is used to mix the 2-component adhesives ( dental impression material )from the cartridges conveniently uniform mixing 1:1.
Advantage
1,Piston--Channeled, double wiper piston eliminates trapped air, waste and dripping.
2,Barrel--Uniform barrel wall thickness for safety.
3,Barrel--Oº taper barrels for smooth top-to-bottom piston travel.
4,Outlet--Threaded tip hubs for safe, secure attachment.
5,Optimum syringe barrels are molded from a proprietary polymer that gives them exceptional clarity and chemical compatibility. 6,Computational Fluid Dynamics analysis was employed to develop a new syringe barrel design that provides fast,accurate dispensing with virtually no fluid waste.
7,The unique internal profile ensures smooth, unimpeded laminar flow, without fluid turbulence or dead zones that could trap air. 8,A tapered internal Luer minimizes fluid shear during dispensing and filling operations.
