Product Details:
Payment & Shipping Terms:
|
| Product Name: | 3.0-17 Static Mixer Nozzle/Plastic Adhesive Dispensing Static Mixer | Type: | 3.0-17 |
|---|---|---|---|
| Mixer Type: | Static Mixer | Standard: | CE/ROHS |
| Color: | White | Material: | Plastic |
| Length: | 103mm | Elements: | 17s |
| Out Diameter: | 5mm | ||
| High Light: | epoxy mixing nozzle,Dispensing static mixer |
||

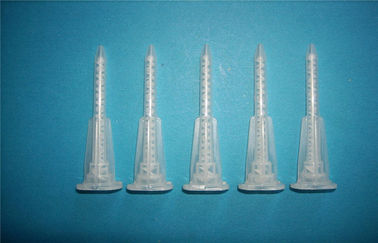

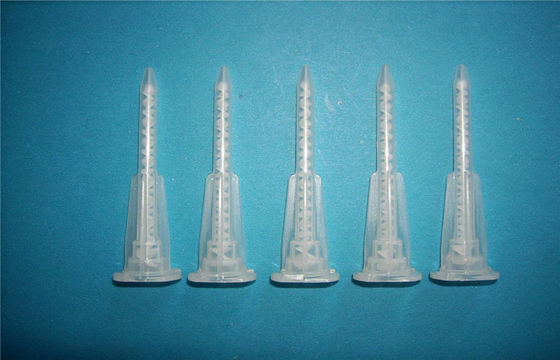

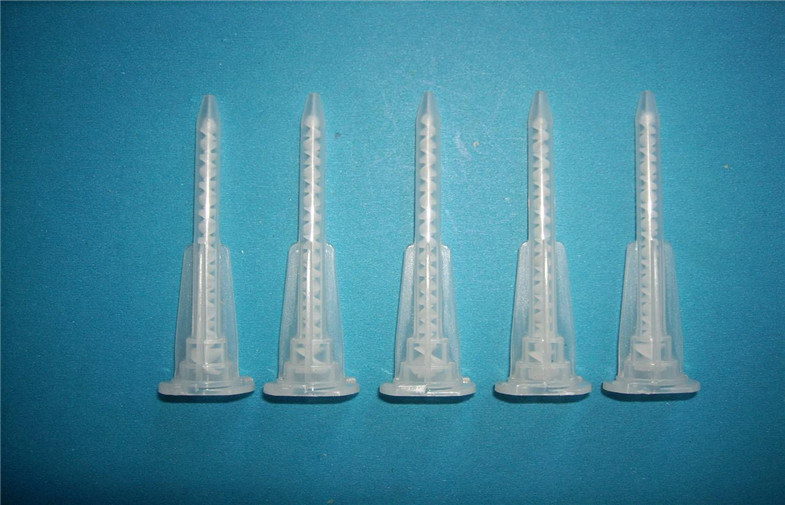

3.0-17 static mixer nozzle/Plastic Adhesive Dispensing static mixer
Specifications:
VMC Round mouth white static mixer
The VMC static mixer apply to 200ml,400ml,600ml and 1500ml AB glue cartridge.
Specially designed according to the fluid core science, Simple operation, effort,
VMC apply to 1:1, 2:1, VMCX apply to 4:1, 10:1, Interface size is 15.9mm.
| Prat No | Inner Dia.I.D | Number of Elements | Outer Dia.O.D. | Length L(mm) | Nozzle Dia.A | Approx.Vol(ml) | Box Qty |
| MA3.0-4S | 3 | 4 | 4.6 | 36.2 | 1 | 0.2 | 300 |
| Y3.0-4 | 3 | 4 | 4.6 | 37.6 | 1 | 0.2 | 500 |
| MA3.0-8S | 3 | 8 | 4.6 | 36.2 | 1 | 0.2 | 300 |
| Y3.0-8 | 3 | 8 | 4.6 | 37.6 | 1 | 0.2 | 500 |
| MA3.0-8D | 3 | 8 | 4.6 | 62.2 | 1 | 0.34 | 1000 |
| MA3.0-17S | 3 | 17 | 4.6 | 62.2 | 1 | 0.34 | 1000 |
| MA5.4-17S | 5.4 | 17 | 7.6 | 103.6 | 1.5 | 1.68 | 500 |
| MA6.3-20S | 6.35 | 20 | 8.7 | 146 | 1.5 | 3.2 | 500 |
| MA6.3-20L | 6.35 | 20 | 8.7 | 148.9 | 1.6 | 2.95 | 500 |
| MA6.3-21S | 6.35 | 21 | 8.7 | 153 | 1.5 | 3.57 | 500 |
| MA6.3-21L | 6.35 | 21 | 8.7 | 151.5 | 1.6 | 3.33 | 500 |
Advantage
1, Piston--Channeled, double wiper piston eliminates trapped air, waste and dripping.
2, Barrel--Uniform barrel wall thickness for safety.
3, Barrel--Oº taper barrels for smooth top-to-bottom piston travel.
4, Outlet--Threaded tip hubs for safe, secure attachment.
5, Optimum syringe barrels are molded from a proprietary polymer that gives them exceptional clarity and chemical compatibility. 6,Computational Fluid Dynamics analysis was employed to develop a new syringe barrel design that provides fast,accurate dispensing with virtually no fluid waste.
7, The unique internal profile ensures smooth, unimpeded laminar flow, without fluid turbulence or dead zones that could trap air. 8,A tapered internal Luer minimizes fluid shear during dispensing and filling operations.
