Industry Epoxy Long Dispensing Epoxy Mixing Nozzle Pom Tube Static Mixer Nozzle

China Industry Epoxy Long Dispensing Epoxy Mixing Nozzle Pom Tube Static Mixer Nozzle supplier

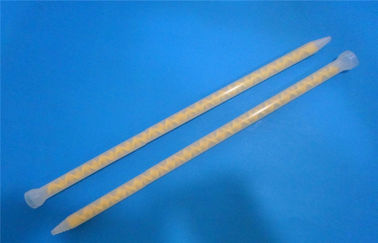

Large Image :  Industry Epoxy Long Dispensing Epoxy Mixing Nozzle Pom Tube Static Mixer Nozzle

Product Details:

Place of Origin: China
Brand Name: VISION
Certification: CE/ROHS
Model Number: VMA06.24

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5 working days after received your payment
Payment Terms: T/T ,Western Union, Paypal, bank transfer
Supply Ability: 500000pcs per month
Contact Now
Detailed Product Description
Product Name: 06.24 Yellow Dispensing Static Mixer Tube/pom Tube Type: 06.24
Mixer Type: Static Mixer Standard: CE/ROHS
Color: White Material: PP&POM
Length: 103mm Elements: 17s
Leght: 6.3mm

06.24 yellow dispensing static mixer tube/pom tube





Specifications:



size inside diameter(mm) outside diameter(mm) element(s) length(mm) top ID(mm) volume(ml)
vme/s05-24 5.4 8 24 148.5 1.5 2.3
vme/s05-32 5.4 8 32 188 1.5 2.8
vme/s06-24 6.3 10 24 186 1.8 4
vme/s06-32 6.3 10 32 235 1.8 6.5
vme/s06-48 6.3 10 48 334 2.4 10
vme/s06-56 6.3 10 56 375 2.4 10.8
vme/s08-24 8 12 24 223 2.4 8.6
vme/s08-32 8 12 32 287 2.4 11.6
vme/s10-12 10 13.5 12 156 3 9.6
vme/s10-18 10 13.5 18 185 3 12.5
vme/s10-24 10 13.5 24 275 3 16
vme/s10-32 10 13.5 32 351 3 23
vme/s13-24 13 16 24 293 4 27
vme/s13-32 13 16 32 379 4 34.5




The mixer attach to the Dispensers. The patented mixer keep parts A and B of the adhesive separate until they meet inside the mixing tips. As a result of this design, the static mixer prevents cross contamination and curing of the A and B components at the interface





Instruction:



The mixer attach to the Dispensers. The patented mixer keep parts A and B of the adhesive separate until they meet inside the mixing tips. As a result of this design, the static mixer prevents cross contamination and curing of the A and B components at the interface (Where the dispenser and static mixer connect.)This eliminates the common unwanted curing problems that typically occur at that interface when using traditional meter, mix, and dispense equipment.





note:



The mixers are disposable products. Re-use can cause cross-infection. Do not re-use it. Please keep them with the proper storage, use and maintenance , the mixers have no obvious Expiration. Device of combination: The mixing tips should be used together with Cartridges and Dispenser. Attach to the dispenser and cartridge, conveniently uniform mixing 1:1 and directly inject to the tray When disposal, please follow the related regulation in your region .
