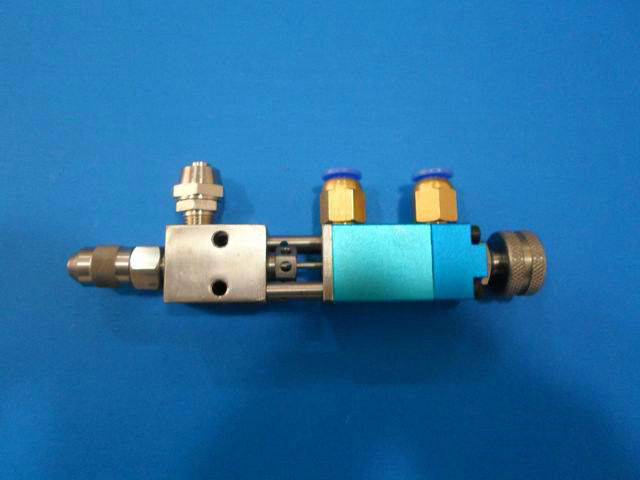

Stainless Steel Large Rotating Single Liquid Dispensing Valve For Epoxy VSD-040

China Stainless Steel Large Rotating Single Liquid Dispensing Valve For Epoxy VSD-040 supplier

Large Image :  Stainless Steel Large Rotating Single Liquid Dispensing Valve For Epoxy VSD-040

Product Details:

Place of Origin: China
Brand Name: VISION
Certification: CE/ROHS
Model Number: VSD040

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5 working days after received your payment
Payment Terms: T/T ,Western Union, Paypal, bank transfer
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Product Name: VSD 040 Dispensing Valve Application: For Epoxy Dispensing
Material: Stainless Steel Standard: CE/ROHS
Color: Blue Work Pressure: 4-6bar
Structure Type: Suck-back

VSD-040 single liquid dispensing valve for epoxy dispenisng





Specifications:



Minimum dispensing amount

0.01ml

Viscosity

<30000cps

Material

Stainless steel

Inlet pressure

1-100bar

Inlet size

1/8” npt(f)

Operating Frequency

<300points/min

Dimensions

130*21*21

Working Temperature

Under 40 Celsius

control mode:

single-action





Description:

1) The diaphragm uses the newest technology and the part of contact liquid is the anti-corrosive material
2) Liquid is neat and without dripping
3) The body of valves is made of aluminum alloy anode carburizing
4) It is suitable in the middle and high viscosity liquid



Large rotating surface design, easy to remove. Flexible PP needle good for complicated working place, prevent scratching, make glue dripping easy. Unique The needle design to ensure the accuracy of the needle length. No flash precision stainless steel tip, ensure continuous glue effect.

This section of the glue dispensing valve is small, shutting down form using sealed plastic thimble, can instantly stop stream. For  low viscosity fluids, such as grease, silicone, epoxy, UV, paint and other liquids. Commonly used in the 0.01-5g each dispensing process. Can be used with solenoid valve or dispensing controller automatic control operation



It's favorable for dispensing lubricant liquids and the application pressure of the material is possible up to 60kgf/. Applicable materials: epoxy , resin, glue. Application cases: Video Deck(Grease Multi spread), CD ROM deck(Oil spread), various kinds of gear equipments, Grease spread





Applications:





1 .Fit for large glue outflow with the big orifice,the discharge rate can be fine adjusted .

2. The part of connecting liquid use anticorrosive material.

3. Functions of preventing liquid and suck-back easy to install.

4 .Application to single-component glue, two-components epoxy resin, polyurethane, silicone, etc.
