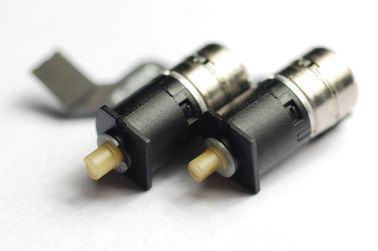

Customized Precise Miniature Planetary Gearbox for OPPO N3

China Customized Precise Miniature Planetary Gearbox for OPPO N3 supplier
Customized Precise Miniature Planetary Gearbox for OPPO N3 supplier Customized Precise Miniature Planetary Gearbox for OPPO N3 supplier

Large Image :  Customized Precise Miniature Planetary Gearbox for OPPO N3

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWPD010010-171

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: USD1-5 per piece
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Contact Now
Detailed Product Description
Diameter: 10mm Reduction Ratio: 171
Rated Load Torque: 85 Gf.cm Rated Load Speed: 40rpm
No Load Speed: 45rpm No Load Current: 32mA
Shaft Type: Plastic Cruciate Output Shaft

Customized 3-24V high Precise Miniature Planetary Gearbox for mobile phone

Specifications


Technical Parameter

motor

DC brush motor

life time

500 hours

working temperature

-40 to 95℃

tolerance

<0.3mm

The basic specifications for reference only, specifications can be customized.





ModelAt Rated LoadAt StallTransmission ReductionOverall Length LGear Box Length L1
SpeedCurrentTorqueStall TorqueStall Current
rpmmAgf.cmgf.cmmARatiommmm
ZWPD010010-171407085.0165.0160171/118.37

above specifications just for reference and customizable according to requirements.

Reliability Test
* Noise Test
* Water-proof Test
* Life Test
* Impact Test
* Storage Test
* Salt Spray Test
* Environmental Related Substance.


2D Drawing

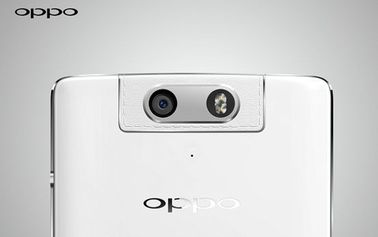

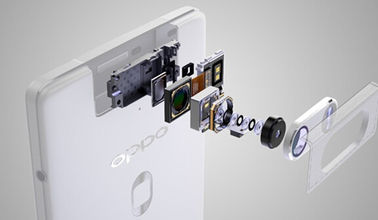

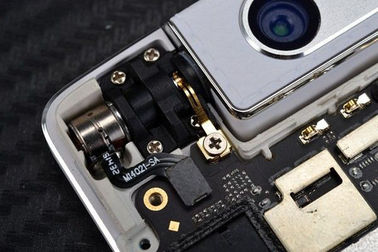

Customized Precise Miniature Planetary Gearbox for OPPO N3


  this gearbox program is designed for particular customer. pictures above come from internet, only for demonstration, no business use. we can research and develop new program for customers.


Application:
750

Audio and visual equipmentnotebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household applicationelectric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipmentOA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive productsconditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and modelsradio control model, automatic cruise control, ride-on toy and etc.
Medical Applicationblood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrialsdisplay, flow control valves and etc.
Electric power toolselectric drill, screwdriver and etc.
Precision instrumentsmonitor, optics instruments,automatic vending machine and etc.
cosmetic tooleyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;
batch order leading time according to the actual situation.


Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products


  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg

FAQ

1. Can you make the gearbox with custom specifications?
YES. We have design and development team, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have design and development team, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?

Please send an inquiry .
