Precision CNC Instrument PTP / CP Adhesive Dispensing Equipment VS-300

Name: Precision CNC Instrument PTP / CP Adhesive Dispensing Equipment VS-300
Brand: VISION
SKU: VS-300
Price: 6350 USD
Availability: InStock
Rating: 4.6 (167 reviews)

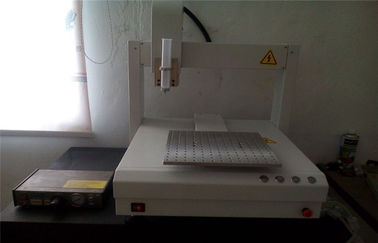

Large Image : Precision CNC Instrument PTP / CP Adhesive Dispensing Equipment VS-300

Product Details:

Place of Origin:	China
Brand Name:	VISION
Certification:	ROHSSGS
Model Number:	VS-300

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	6350USD
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	western Union or paypal or bank transfer
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Product Name:	VS-300 Precision CNC Instrument Automatic Glue Dispenser Robot/Dispensing Robot	Application:	Glue/epoxy/resin
Weight:	55kg	Dispensing Size:	300300100mm
Type:	VS-300	Motor System:	High Precision Motor
Standard:	ROHS/SGS	Display:	LCD Teach Box
High Light:	glue dispensing equipment , epoxy dispensing machine

VS-300 Precision CNC instrument automatic glue dispenser robot/dispensing robot

Specifications:

1.Pro & skilled manufacturer.
2.Excellent performance, good price.
3.Prompt & swift delivery.

Load Y-AXIS / Z-AXIS:	VS-300
X&Y / Z ( mm/sec ):	0.1-800/500
Resolution:	0.001 mm/Axis
Repetitive Positioning Accuracy:	- 0.01 C23mm/ Axis
Program Capacity:	At least 100 groups, each group 4000 points
Data Storage Type:	CF Card
Program Display:	Teach Pendant LCD
Motor System:	Micro-step precision motor
Control Method:	PTP & CP
Interpolation Function:	3 axis (3D stereo space arbitrary paths can)
Programming Method:	Teaching box/PC
I/O Signals Port:	8 / 8 Outputs Inputs
External Control Interface:	RS232
Power Supply:	AC110 220V 300W
Working Temperature:	10 - 40 C
Working Relative Humidity:	20 - 90% no condensation
Dimensions (WxDxH mm):	480X500X600
Robot Weight (kg):	32kgs

Automatic glue dispenser robot General applications:

Automatic glue dispenser robots are widely applied to fluid dispensing, eg: UV glue, AB glue, Epoxy(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

Main features:

1. Keyboard control in English version, easy operation and maintenance.
2. Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Equipped with pro. software that has area display, translation rotating operation functions.
4. Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
5. According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
6. Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
