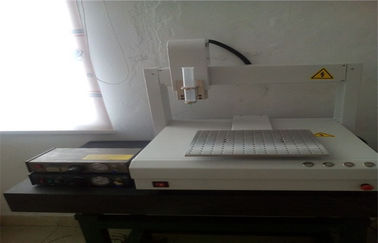

Desktop Epoxy Adhesive Dispensing Robot Systems With Ce Listed

Desktop Epoxy Adhesive Dispensing Robot Systems With Ce Listed
Desktop Epoxy Adhesive Dispensing Robot Systems With Ce Listed

Large Image :  Desktop Epoxy Adhesive Dispensing Robot Systems With Ce Listed

Product Details:
Place of Origin: China
Brand Name: VISION
Certification: ROHSSGS
Model Number: VS-200
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 6350USD
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: western Union or paypal or bank transfer
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: VS-200 New Design Low Cost Desktop CE Listed Dispensing Robot Application: Glue/epoxy/resin
Weight: 45kg Dispensing Size: 200*200*100mm
Type: VS-200 Motor System: High Precision Motor
Standard: ROHS/SGS Display: LCD Teach Box
High Light:

glue dispensing equipment

,

epoxy dispensing machine

VS-200 New Design Low Cost Desktop CE Listed Dispensing Robot

Specifications:



1. Proper for a variety of common sealants
2. 99 programs
3. CE listed



model VS-200
Working Range X/Y/Z (mm):  200/200/50
Load Y-AXIS / Z-AXIS:  5 / 3 kgs
X&Y / Z ( mm/sec ): 0.1-500/250
Resolution: 0.001 mm/Axis
Repetitive Positioning Accuracy: 0.01 mm/ Axis
Program Capacity:  At least 100 groups, each group 4000 points
Data Storage Type:  CF Card
Program Display:  Teach Pendant LCD
Motor System:  Micro-step precision motor
Control Method: PTP & CP
Interpolation Function:  3 axis ( 3D stereo space arbitrary paths can)
Programming Method:  Teaching box / PC
I/O Signals Port:  8 / 8 Outputs Inputs
External Control Interface:  RS232
Power Supply:  AC110 220V 300W
Working Temperature:  10 - 40 C
Working Relative Humidity:  20 - 90% no condensation
Dimensions (WxDxH mm):  380X370X500
Robot Weight (kg):  23kgs





Application



Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.

Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

Glue type

Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue,

 red glue, silver paste, thermal paste, solder paste, transparent paint,





Feature:



Teach Pendant and (optional) PC programming

Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.

Can set the glue amount, speed and time etc. Stable glue flow and no leaking.

Four barrels work at the same time to improve efficiency.

Equipped with software that has the area display, translation rotating operation functions.
