Product Details:
Payment & Shipping Terms:
|
| Product Name: | 3 Axis Dispenser Robot | Application: | Glue/epoxy/resin |
|---|---|---|---|
| Weight: | 65kg | Dispensing Size: | 300*300*100mm |
| Maximum Load: | 5KG | Motor System: | High Precision Motor |
| Standard: | ROHS/SGS | Display: | LCD Teach Box |
| High Light: | glue dispensing equipment,epoxy dispensing machine |
||
Specifications:
|
|
Mobile speed (mm/sec)
|
500/350
|
|
Ability to decompose
|
0.01mm/axis
|
|
|
Repeatability
|
+/-0.01mm/axis
|
|
|
Program recording mode
|
5000points
|
|
|
Operation mode
|
PTP&CP
|
|
|
Transmission
|
timing belt
|
|
|
Motion interpolation function
|
3axis 3D
|
|
|
I/O Signal
|
8Inputs / 8Outputs
|
|
|
External Control Interface
|
RS232
|
|
|
Input Power
|
Full voltage AC110～ 220V(the internal switching )
|
|
|
|
Operating ambient temperature
|
5-40℃
|
|
OSD Language |
English, Chinese, |
|

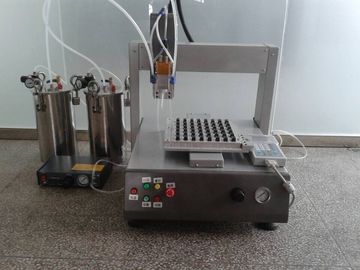

Machine performance: Automatic 3 axis dispenser robot
1. The generation of artificial particular dispensing operation, realizing mechanization production
2. Without any external teaching apparatus, debugging more convenient than similar products, simple and convenient, high-speed precision.
3. Has a point, line, face, arc, circle, irregular curve function such as continuous repair and triaxial linkage between;
4. The software has the area array, rotation of translation, and other functions. The program file can be through the U disk to upload/download, convenient data management, and save.
5 glue quantity size thickness, coating speed, dispensing time, stop time all can set parameters, the glue quantity is stable, not LouDi glue;
6. According to the process need, can be mounted to the workbench positioning PIN, glue gun or floor heating temperature control device
7. Apply fluid dispensing, for example: the UV glue, AB glue, EPOXY (vinyl), white glue, EMI conductive adhesive, SILICON, EPOXY resin, instant glue, silver glue, red glue, solder paste, cooling paste, solder paste, clear lacquer, screws, etc
8. Suitable for object: mobile phone, computer case, CD machine, printer, and ink holder, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiator, semiconductor, electronics, or with SMT equipment attachment quick point/glue, clock, toys, medical equipment and other liquid dispensing products.
9. Optional two fine-tuning glue tube clamp, double work at the same time, multiplied improve work efficiency.
Competitive Advantage:
1, High quality products and favorable price.
2,On-time delivery and the shortest delivery time.
3, 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
4, Any operation problems, contact us, we'll give you the best technical support.
