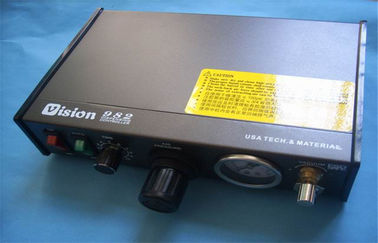

High Precision Custom Adhesive Dispensing Machine 10-100PSI / 1-80PSI

China High Precision Custom Adhesive Dispensing Machine 10-100PSI / 1-80PSI supplier

Large Image :  High Precision Custom Adhesive Dispensing Machine 10-100PSI / 1-80PSI

Product Details:

Place of Origin: China
Brand Name: VISION
Certification: CE/ROHS
Model Number: VS-983

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5 working days after received your payment
Payment Terms: western Union/paypal/bank transfer
Supply Ability: 3,00pcs per month
Contact Now
Detailed Product Description
Product Name: Adhesive Dispensing Machine/vs-983 High Precision Automatic Glue Dispenser Application: Glue ,epoxy, Resin Dispensing
Weight: 2.5KG Size: 230*150*53mm
Standard: CE/ROHS/ Model: Vs-983



Adhesive Dispensing Machine/vs-983 high precision Automatic Glue Dispenser



Specifications:



983 dispensing glue gun

Dimensions

: 235mmx225mmx60mm

Spit mode:

16 kinds of free-setting mode, time display with spit

Power supply

: AC 220V ± 10% / 50Hz AC 110V ± 10% / 60Hz (can be internal conversion)

Internal voltage

: 12VDC/24VDC

type

vs 983

Input pressure / output pressure

10-100PSI / 1-80PSI

Air source

Maximum 0.99MPa (clean dry air without lubrication)

Out pressure adjustment range

0.05MPa - 0.99MPa

Clock out time

00.01-99 .99 S

Artificial time out

Sustainable spit coating, crossed









Description:



1, controlled by microcomputer making the dispensing volume and time more precise.
2, Easy and convenient to operate, matched with manual or pedal switch, enable to dispense with certain volume in fixed time.
3, Four modes available,manual,automatic,semi-auto,pedal control.
4, Perfect appearance by design, smart volume for saving space.
5, Kinds of dispensing nozzles for choosing.

6, one set include: one PCS dispensing machine, one PCS foot switch, one glue tank, one PCS nozzle, one PCS adaptor

.



Instruction and installation



1.Installation

Fully-automatic Epoxy Injection Machine

2.Setting the way

Fully-automatic Epoxy Injection Machine



Attention and maintenance





1, Air pressure cant be more than 7bar(10psi), working air pressure cant be more than5.5bar (78psi), if the working air pressurer is more than 4 bar, pls use the original partsfrom the manufacter.



2, The liquid material must be stired evenly before putting to the cylinger needle. It will be better if the liquid material can be stored at the stable temperature of 5 degree centigradeto make sure there is no big change in the density of the liquid material. If the density ofthe liquid is so high, ( it means the liquid is so viscous, it may be hard to spit out). If theliquid need to be diluted, pls compliant to the instruction of the liquid material manufacture.



3, Don’t sharply increase the Vacuum, otherwise, the liquid will be pulled in the catheterby the vacuum. The qty of the vacuum pump back rely on the air pressure level, workingcycle, qty of the liquid to spit. If the qty of the vacuum is too much, the piston will beoverset, disturbing the normal work

4, Avoid to overset the liquid cylinder, otherwise, the liquid will flow to the air cylinderto destroy the internal aprt.



5, Pls clear the stuff left in the cylinder needel when needed. Otherwise the stuff willbecome hard, then disturbing the vacuum pumpback and stop the cylinder needle.



6, After using the machine, the cylinder needle need to be cleaned every time, otherwise,it is difficult to unload the needle when the liquid becomes hard. Normally, it is easy toremove the liquid from the inside of the cylinder needle, just dipping the parts in the handwater for 5~10minutes, all the part will be cleaned.



7, Pls disposal the used needle and cylinder needle at appropriate place to avoide somei nappropriate liquid pollution





Advantage:



(1) 10-year esd producst Manufacture Experience



(2) Quick and Safe Delivery



(3) Professional Service Team



(4) 24 hours On Line Customer Service



(5) OEM and ODM Services offered.



(6) Distribution Channel in all over the world
