High Accuracy Robotic Automatic Glue / Adhesive Dispensing Machine 12VDC / 24VDC

China High Accuracy Robotic Automatic Glue / Adhesive Dispensing Machine 12VDC / 24VDC supplier

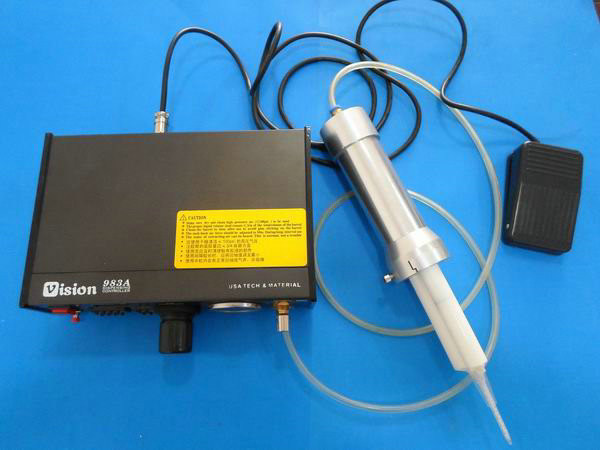

Large Image :  High Accuracy Robotic Automatic Glue / Adhesive Dispensing Machine 12VDC / 24VDC

Product Details:

Place of Origin: China
Brand Name: VISION
Certification: CE/ROHS
Model Number: VS-983

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5 working days after received your payment
Payment Terms: western Union/paypal/bank transfer
Supply Ability: 3,00pcs per month
Contact Now
Detailed Product Description
Product Name: 983 Dispensing Controller Application: Glue ,epoxy, Resin Dispensing
Weight: 2.5KG Size: 230*150*53mm
Standard: CE/ROHS/ Type: Free Standing



High Accuracy Robotic Automatic Glue / Adhesive Dispensing Machine 12VDC / 24VDC



Specifications:





Dimensions

: 235mmx225mmx60mm



Spit mode:

16 kinds of free-setting mode, time display with spit



Power supply

: AC 220V ± 10% / 50Hz AC 110V ± 10% / 60Hz (can be internal conversion)



Internal voltage

: 12VDC/24VDC



Power consumption

<8W

Input pressure / output pressure

10-100PSI / 1-80PSI

Air source

Maximum 0.99MPa (clean dry air without lubrication)

Out pressure adjustment range

0.05MPa - 0.99MPa

Clock out time

00.01-99 .99 S

Artificial time out

Sustainable spit coating, crossed



Out interval adjusttment

0.1-9 .9 S (automatic timing function)

Support Ad files

Vacuum function

adjustable to 600 mm Hg negative pressure control

Repeatability and out Frequency

Accuracy: +0.01% Frequency:> 800 beats / min

Minimum discharge rate

0.001ml

OSD Language

English





Description:



High Accuracy Robotic Automatic Glue / Adhesive Dispensing Machine 12VDC / 24VDC





1

Power: lighten-on, extinguish-off

2

Dispalyer for spit timing, showing time setting

3

Adjuster for input air pressure, pull out first, then air pressure up when clockwiseswitching, air

pressure down when anti-clock switching

4

Air pressure displayer: 0~100pSi

5

Vacuum controler: Vacuum Withdrawing up when anti-clock switching, Vacuum Withdrawing down

when clockwise switching

6

test button: it can replace the footswitch when testing

7

Spit time DIP button: show the time has set, using plus &subtract way 00.01second ~99.99 second

8

Interval DIP button: show the time has set, using plus &subtract way 0.1second ~9.9 second (timing

automatically)

9

Spit outlet: connect spit needle

10

Air pressure input port: connect the high pressure air source

11

Programming unit for spiting way: 16 kinds flexible setting

12

Footswitch controller port: connect the footswitch switcher

13

Power input outlet

14

Insurance outlet



Instruction and installation



1.Installation

Fully-automatic Epoxy Injection Machine

2.Setting the way

Fully-automatic Epoxy Injection Machine



Attention and maintenance





1, Air pressure cant be more than 7bar(10psi), working air pressure cant be more than5.5bar (78psi), if the working air pressurer is more than 4 bar, pls use the original partsfrom the manufacter.



2, The liquid material must be stired evenly before putting to the cylinger needle. It will be better if the liquid material can be stored at the stable temperature of 5 degree centigradeto make sure there is no big change in the density of the liquid material. If the density ofthe liquid is so high, ( it means the liquid is so viscous, it may be hard to spit out). If theliquid need to be diluted, pls compliant to the instruction of the liquid material manufacture.



3, Don’t sharply increase the Vacuum, otherwise, the liquid will be pulled in the catheterby the vacuum. The qty of the vacuum pump back rely on the air pressure level, workingcycle, qty of the liquid to spit. If the qty of the vacuum is too much, the piston will beoverset, disturbing the normal work

4, Avoid to overset the liquid cylinder, otherwise, the liquid will flow to the air cylinderto destroy the internal aprt.



5, Pls clear the stuff left in the cylinder needel when needed. Otherwise the stuff willbecome hard, then disturbing the vacuum pumpback and stop the cylinder needle.



6, After using the machine, the cylinder needle need to be cleaned every time, otherwise,it is difficult to unload the needle when the liquid becomes hard. Normally, it is easy toremove the liquid from the inside of the cylinder needle, just dipping the parts in the handwater for 5~10minutes, all the part will be cleaned.



7, Pls disposal the used needle and cylinder needle at appropriate place to avoide somei nappropriate liquid pollution





Applications:



The electric apparatus of the car, packaging, household appliances, the bearing,
Circuit board, electronic element, the camera, medicine,
The package of the electric apparatus, the condenser, the production process is dealt with, the instrument,
Jewel, the relay, quartz crystal, integrated circuit,
Lamp decoration, the apparatus of radio, electric wire connector
