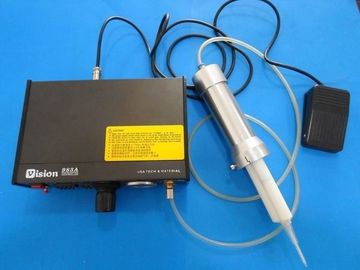

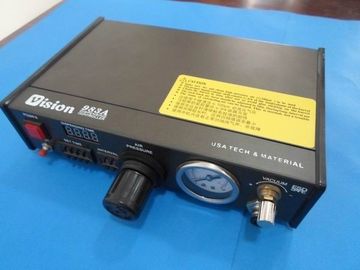

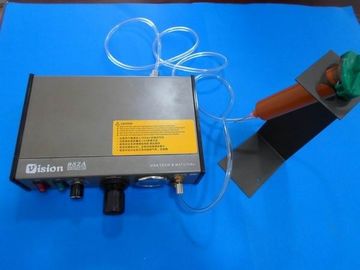

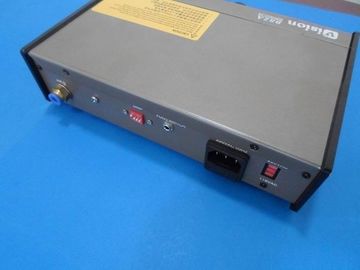

easy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispenser

China easy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispenser supplier
easy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispenser supplier easy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispenser supplier easy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispenser supplier easy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispenser supplier

Large Image :  easy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispenser

Product Details:

Place of Origin: China Dogguan
Brand Name: vision
Certification: CE,ROSH
Model Number: VS-982

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 80-85/set
Packaging Details: one set per box, box size 30cm*20cm*14cm
Delivery Time: 3 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100set per month
Contact Now
Detailed Product Description
Spit Mode: 16 Kinds Of Free-setting Mode Automatic Timed Spit: 0.01S-99.99S
Timed Artificial Spit: Sustainable Spit Coating, Crossed Minimum Deposit: 0.0001ml
Input Voltage: 220V ± 10% 50Hz Internal Voltage: 12VDC
Air Input: 10-100sPi

1, Air pressure cant be more than 7bar(10psi), working air pressure cant be more than5.5bar (78psi), if the working air pressurer is more than 4 bar, pls use the original partsfrom the manufacter.

2, The liquid material must be stired evenly before putting to the cylinger needle. It will be better if the liquid material can be stored at the stable temperature of 5 degree centigradeto make sure there is no big change in the density of the liquid material. If the density ofthe liquid is so high, ( it means the liquid is so viscous, it may be hard to spit out). If theliquid need to be diluted, pls compliant to the instruction of the liquid material manufacture.

3, Dont sharply increase the Vacuum, otherwise, the liquid will be pulled in the catheterby the vacuum. The qty of the vacuum pumpback rely on the air pressure level, workingcycle, qty of the liquid to spit. If the qty of the vacuum is too much, the piston will beoverset, disturbing the normal work.

4, Avoid to overset the liquid cylinder, otherwise, the liquid will flow to the air cylinderto destroy the internal aprt.

5, Pls clear the stuff left in the cylinder needel when needed. Otherwise the stuff willbecome hard, then disturbing the vacuum pumpback and stop the cylinder needle.

6, After using the machine, the cylinder needle need to be cleaned every time, otherwise,it is difficult to unload the needle when the liquid becomes hard. Normally, it is easy toremove the liquid from the inside of the cylinder needle, just dipping the parts in the handwater for 5~10minutes, all the part will be cleaned.

7, Pls disposal the used needle and cylinder needle at appropriate place to avoide somei nappropriate liquid pollution

easy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispensereasy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispensereasy operate Dispensing accurate 982 semi automatic resin dispenisng macihne glue dispenser



The way to spit

16 flexible setting way with time showing

Automatic timing spit

00.01 second~99.99 second

Manual timing spit

Can spit consistently

Minimum spit qty

0.0001 ml

Spit interval

0.1~9.9 second (Automatic timing function)

Input voltage

220+/-10%,50hz

Internal voltage

12VDC

Input air pressure

10-100pSi

Output air pressure

1-80pSi

Dimension

235*225*63mm

Weight

<2.2kg
