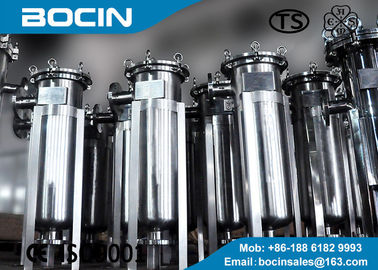

SS Bag Filter Housing Water Treatment / Side in single bag filter

SS Bag Filter Housing Water Treatment  / Side in single bag filter
SS Bag Filter Housing Water Treatment  / Side in single bag filter SS Bag Filter Housing Water Treatment  / Side in single bag filter SS Bag Filter Housing Water Treatment  / Side in single bag filter

Large Image :  SS Bag Filter Housing Water Treatment / Side in single bag filter

Product Details:
Place of Origin: JIANGSU, CHINA
Brand Name: UNITE
Certification: ASME, ISO9001
Model Number: U-DS-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 500 Sets/Month
Detailed Product Description
Material: CS, SUS304, SUS316L Pressure: 0.1-1.6Mpa
Operating Temperature: Max 70 Micron Rating: 1~100microns
Application: Sea / River / Lake / Rain / Industrial Water Filtration Model: Parallel Bag Filter
Filtration Rating (μm): 0.5-500 Microns
High Light:

single bag filter housing

,

stainless steel bag filter housing

Stainless Steel Parallel Type Bag Filter Housing



Description:



The parallel filter is a filter by two or more parallel and a feed pump simultaneously to multiple filter liquid transport, strong circulation, maintenance of single equipment and replacement of filter bag, as long as the control ball valve does not need to stop the feeding pump, to achieve 24 hours of continuous work, many the operation is easy;



Model Filter area (m2) Max flowtare(m3/h) Working pressure(Mpa)
U-BL-1 0.5 40 1
U-BL-2 1 80 1
U-BL-3 0.5 40 1
U-BL-4 1 90 1

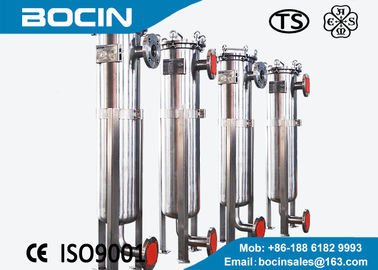

SS Bag Filter Housing Water Treatment  / Side in single bag filter 0



SS Bag Filter Housing Water Treatment  / Side in single bag filter 1



Product Advantage:

With two three way ball valves, two single cylinder filters are assembled on a common frame, switching and cleaning, and the filter does not stop, so as to ensure continuous production. Filter element of the filter, in addition to the use of stainless steel relief core, also be high-quality honeycomb absorbent fiber cotton, can filter out diameter of more than 1 mu of particles, the filter can be used in single cylinder, just remove the common base, the rest of the same size. The inner and outer surface of the filter is polished, and a filter bag and a filter bag support basket are arranged in the filter cylinder; the top is provided with an air release valve for discharging air in the filter when filtering. The upper cover and the filter cylinder are connected by a quick opening structure, and the utility model is more convenient for cleaning (replacing) the filter bag, and the three adjustable supporting feet can ensure the filter to be stably placed on the ground. The connecting pipe adopts live connection or clamp connection, and the inlet and outlet valve adopts three way ball valve to start and close. The utility model has the advantages of pressure resistance, temperature resistance, flexible operation, no leakage of liquid, and more sanitation



Performance Characteristics:

1. the operation is simple and convenient, the occupation area is small, and the installation is simple;

2. high filtration accuracy, applicable to any fine particles or suspended solids;

3. the effective filter area is large, a filter bag filter function is equivalent to the same type of filter 5-10 times, can greatly reduce costs;

4. widely used, can be used for rough filtration or fine filtration;

5. units of filtration treatment of large flow, small resistance, high filtration efficiency;

6. to achieve the same filter effect, the advantages of the filter, filter and raw water pretreatment filter, such as low investment cost, low filtration cost, long service life and so on.
