Payment & Shipping Terms:
|SURFACE:||PAINTING /POLISHING||Filtration Rating (μm):||0.2-30 Microns|
|Brand Customized:||Yes||Type:||Sanitary Grade|
filter cartridge housing,
stainless steel water filter housing
Sanitary water filter cartridge

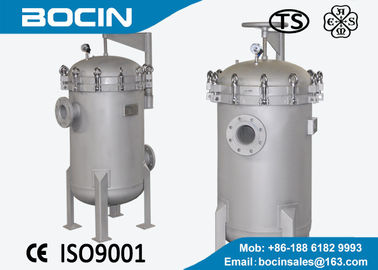

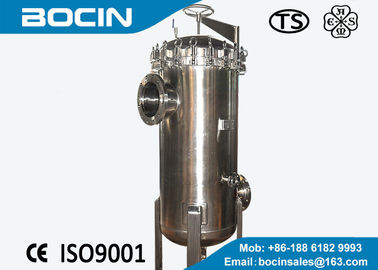

U - JM - WY series health level filter cylinder are all made of high quality 304 or 316 l stainless steel materials, each filter are through strict selection and elaborate manufacture, ensure complete streamlined design and free of cracks.Filter has a good surface and the maximum corrosion resistant ability, prevent bacterial contamination in order to achieve quality standards, hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.
Can effectively out of liquid strain, etc.;
Can be filtered under high pressure;
Unique deep net structure make the filter has a higher load capacity for slag;
Filter can be used a variety of materials, so as to adapt to the needs of the various fluid filtration;
Appearance of small size, big filter area, small resistance, long service life;
Import and export of the clamp or flange connection, easy cleaning and disinfection of the equipment.
Design criteria: refer to GB 150-2011
Design pressure: 0 ~ 1.6 MPa;
Filter form: 10 ~ 40 '222 or 226 interface standard filter;
The gasket material: teflon, fluorine rubber, silicone rubber, nitrile butadiene rubber, etc.
Shell material: 304/316 l, non-standard design (CS liner PO, etc.);
Filtration precision, 0.02 ~ 200 um;
Working temperature: 20 ~ 110 ℃.
Optional filter: PP folding, glass fiber folding, PES folded, PTFE fold, stainless steel sintered felt fold, titanium rods, etc.
