High Precision Plastic Dispensing Static Mixer Nozzle To Mix 2 Component Adhesives

China China Adhesive Dispensing Machine Online Market certification
China China Adhesive Dispensing Machine Online Market certification
Customer Reviews
Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Very appreciate for your professional service & higher standard quality control,very happy to know you.

—— Mr Johnifere

I'm Online Chat Now

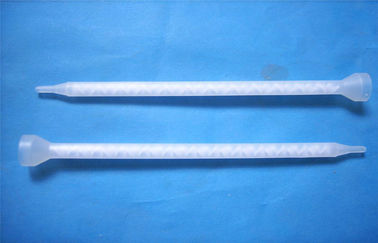

High Precision Plastic Dispensing Static Mixer Nozzle To Mix 2 Component Adhesives


Large Image :  High Precision Plastic Dispensing Static Mixer Nozzle To Mix 2 Component Adhesives

Product Details:
Place of Origin: China
Brand Name: VISION
Certification: CE/ROHS
Model Number: VMA6.32
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 5 working days after received your payment
Payment Terms: T/T ,Western Union, Paypal, bank transfer
Supply Ability: 500000pcs per month
Detailed Product Description
Product Name: 6-32 Static Mixer Nozzle/ Dispensing Static Mixer Type: 6-32
Mixer Type: Static Mixer Standard: CE/ROHS
Color: White Material: Plastic
Length: 103mm Elements: 17s
Out Diameter: 5mm
High Light:

epoxy mixing nozzle


Dispensing static mixer


6-32 static mixer nozzle/ Dispensing static mixer




The satic mixers are disposable products. Re-use can cause cross-infection. Do not re-use it. Please keep them with the proper storage, use and maintenance , the mixers have no obvious Expiration. Device of combination: The mixing tips should be used together with Cartridges and Dispenser. Attach to the dispenser and cartridge, conveniently uniform mixing 1:1 and directly inject to the tray When disposal, please follow the related regulation in your region


Prat No Inner Dia.I.D Number of Elements Outer Dia.O.D. Length L(mm) Nozzle Dia.A Approx.Vol(ml) Box Qty
MA3.0-4S 3 4 4.6 36.2 1 0.2 300
Y3.0-4 3 4 4.6 37.6 1 0.2 500
MA3.0-8S 3 8 4.6 36.2 1 0.2 300
Y3.0-8 3 8 4.6 37.6 1 0.2 500
MA3.0-8D 3 8 4.6 62.2 1 0.34 1000
MA3.0-17S 3 17 4.6 62.2 1 0.34 1000
MA5.4-17S 5.4 17 7.6 103.6 1.5 1.68 500
MA6.3-20S 6.35 20 8.7 146 1.5 3.2 500
MA6.3-20L 6.35 20 8.7 148.9 1.6 2.95 500
MA6.3-21S 6.35 21 8.7 153 1.5 3.57 500
MA6.3-21L 6.35 21 8.7 151.5 1.6 3.33 500




Intended use


The static mixer nozzle is used to mix the 2-component adhesives ( dental impression material )from the cartridges conveniently uniform mixing 1:1.





1, Piston--Channeled, double wiper piston eliminates trapped air, waste and dripping.

2, Barrel--Uniform barrel wall thickness for safety.

3, Barrel--Oº taper barrels for smooth top-to-bottom piston travel.

4, Outlet--Threaded tip hubs for safe, secure attachment.

5, Optimum syringe barrels are molded from a proprietary polymer that gives them exceptional clarity and chemical compatibility. 6,Computational Fluid Dynamics analysis was employed to develop a new syringe barrel design that provides fast,accurate dispensing with virtually no fluid waste.

7, The unique internal profile ensures smooth, unimpeded laminar flow, without fluid turbulence or dead zones that could trap air. 8,A tapered internal Luer minimizes fluid shear during dispensing and filling operations.





Payment terms Paypal, T/T( 30%deposit in advance, balance before shipment),Western Union)
Sample Time we have stock for sample
Delivery Time about 5 days according the order quantity
Delivery terms By express(DHL,EMS,UPS,FedEx-small order ), fob shenzhen by sea,CIF if special needed
