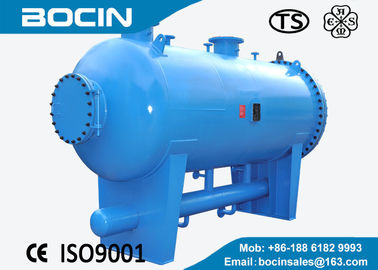

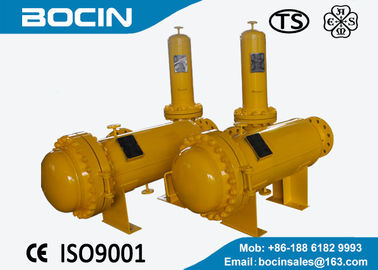

ASME Solid Gas filter separator / natural gas filter separator for solid removing

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  ASME Solid Gas filter separator / natural gas filter separator for solid removing

Product Details:
Place of Origin: CHINA
Brand Name: UNITE
Certification: ASME, ISO, ABS
Model Number: U-TC-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Export Wooden Case
Delivery Time: 10-50 days
Payment Terms: T/T, L/C
Supply Ability: 500 Set/Sets / Month
Detailed Product Description
TYPE: Dry Gas Filter Separator Operating Temperature: -40~300℃
Operating Pressure: 0.1~40Mpa Seperate Accuracy: 0.1/1/2/3/5/10um
Separate Efficiency: 99.98% Installation: Vertical Or Horizontal
High Light:

dry gas filter

,

gas liquid separator

UNITE ASME Solid Gas filter separator natural gas filter separator for solid removing


Description >>
UNITE dry air filter is to remove dust particles from the gas high efficiency filtration products. It is used to remove dust, solid particles and rust inthe gas. High performance filters pay a crucial role on the protection of precision equipment in gas processing and transportation systems downstream.
Filter uses advanced and reliable elements, in order to ensure performance of the device. A wide selection of filter material, such as ultrafine glass fiber, polyester, multilayer fiberglass, polypropylene, nylon and so on. according to different requirements Select the type of cartridge
Performance parameters>>
Manufactured standard: GB150 or ASME
Vessel material: CS ,stainless steel
Filter accuracy: 0.1μm ,1μm,2μm,3μm,5μm, 10μm
Filtration efficiency: 99.98%
Installation: Vertical or Horizontal

2, Dry gas filter separator  Operation priciple
After the containing impurities gas into the filter, large particles collide with deflector inside the filter then start separating from the natural gas. fine solid particles will be removed when the gas flow from the outside through filter element. Finally, the purified gas exiting from the filter.

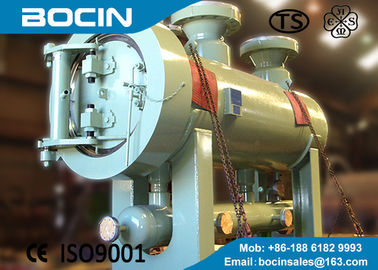

One end of the device using the quick opening blind or blind flanges, open and close when to replace the filter. Using quick blind can turn on or off real fast, just need one minute so saving time and avoiding some security risk when replace the filter elements

3, Dry gas filter separator Specification
.jpg



4, Dry gas filter separator element
Description >>
Gas-solid separation elements, is core component of dry air filter and used to remove particulate impurities from natural gas, liquefied petroleum gas, hydrogen, natural gas and petrochemical plants dry gas and etc.
PF series filter elements is using multi folding techniques, compared to ordinary cylindrical cartridge, the filter area is four times or more
Product structure >>
Size: outside diameter 68,90,110,150mm and etc
length: 300mm ~ 2000mm
Filter material: Plant fibers, Glass fibers, Polyester fibers, Metal fibers
Filter frame: Stainless steel or other materials
Performance parameters>>
Initial pressure drop: ≤ 0.012MPa
Filter structural strength: more than 1MPa
Design temperature range: ≤150 ℃
Filtration precision: 0.3,0.5,1,3,5,10 μm
ASME Solid Gas filter separator / natural gas filter separator for solid removing 2

  5, Dry gas filter separator  Application cases

Gas Dust
Remove the desiccant particles on drying bed downstream
Removal of catalyst particles on catalyst bed downstream
For metering and regulating stations
For city gas distribution system
Protect downstream equipment


gas filter separator
gas liquid separator
filter separator
