100um carbon steelAuto Back Flushing Filter / washing filter with CE

100um carbon steelAuto Back Flushing Filter  / washing filter with CE
100um carbon steelAuto Back Flushing Filter  / washing filter with CE 100um carbon steelAuto Back Flushing Filter  / washing filter with CE

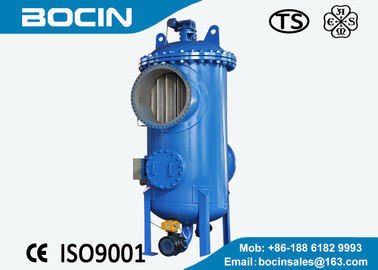

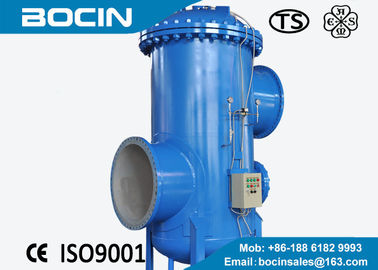

Large Image :  100um carbon steelAuto Back Flushing Filter / washing filter with CE

Product Details:
Place of Origin: jiangsu, china
Brand Name: UNITE
Certification: ASME, ISO, ABS
Model Number: U-FC-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 500 Set/Month
Detailed Product Description
Material: CS,SS Design Standard: GB Or ASME
Control Mode: Manual Or Automatic Application: Sea Water Desalination, Oil Field Water Flooding Back
OEM: Yes Precision: Can Reach 5um
High Light:

automatic backflush filter

,

back flush filter

multi-tube automatic back washing filter with 5um high precision



Description:


Shell and tube type automatic backwash filter adopts mechanical separation principle, using imported Johnson filter element(such as element from Belgium trislot) to separate the impurity in the raw material, filter system is composed of multiple columns set of parallel filtering units.

The flow direction is from outside to inside and when backwashing, it is from inside to outside. When the raw material passes through the filter vessel with filter elements, the particles are gradually deposited and gathered in the outer surface area of the filter element, forming a filter cake. With the increase of the thickness of filter cake, liquid is more and more difficult to penetrate the filter element differential pressure increases, when the differential pressure or run time the set value, the raw material inlet valve closed firstly, and then open the back flush valve, the filtered liquid flows from the top of filter to the bottom, forming pressure different to remove the filter cake off. The filter cake will be drained out. After the other column is completed backwashed, close the drain valve, and restart the filtration process. And back wash the other columns in turns.


Product Characteristics:

1.Multi-tube design, various combinations based on the actual processing and layout.
2.Convenient maintenance, maintenance or cleaning the equipment does not affect the normal operation of the whole equipment.
3.24 hours continuous filtration, full automation.
4.During the backwash process, filtration units can function in turns.
6.Filtration equipment adopts pneumatic drain value with the advantages of short flush time, small water consumption, environmental friendly and economical.
8.Filter adopts Siemens PLC control system which enables remote control.


Application Fields:
The sea water desalination
The boiler water recycle
oil field water flooding back
Ion-exchange pretreatment
Circulating cooling water
ship's ballast water
Ultrafiltration, reverse osmosis filter



100um carbon steelAuto Back Flushing Filter  / washing filter with CE 0

100um carbon steelAuto Back Flushing Filter  / washing filter with CE 1
